Allen Bradley PLC ControlLogix Hardware

Today we are going to discuss the PLC hardware used in large-scale industries i.e. Allen Bradley (AB) PLC (1756 ControlLogix).

Last updated: May 3, 2023 9:54 am
vicky
PLC Tutorials
No Comments
Share
6 Min Read
SHARE

Today we are going to discuss the most common type of PLC hardware used in large-scale industries i.e. Allen Bradley (AB) PLC (1756 ControlLogix) which can be seen in the below picture.

Contents
Allen Bradley PLC ControlLogix HardwareChassisPower supplyCPUIO modulesRedundancy moduleControlNet moduleEthernet Module

A simple ControlLogix system consists of a stand-alone controller and I/O modules in a single chassis. It is a modular type PLC.

Allen Bradley PLC ControlLogix Hardware

A ControlLogix system can be anything from a simple chassis to a highly-distributed system consisting of multiple chassis and networks working together.

Allen Bradley PLC ControlLogix Hardware

Like every other system, it has a redundant power supply, controller, IO modules, redundancy modules, and communication card.

We will discuss all of them.

Chassis

The ControlLogix system is a modular system that requires a 1756 ControlLogix chassis. The chassis is designed for only horizontal back-panel mounting.

The below image is the chassis of a PLC.

Chassis of PLC

The power supply unit is placed on the left-most side only & you can place any module into any slot.

The backplane provides a high-speed communication path between modules and also the power to them.

Different chassis available are:

Model NumberSlots
1756-A4   4 Slot ControlLogix Chassis
1756-A7   7 Slot ControlLogix Chassis
1756-A10   10 Slot ControlLogix Chassis
1756-A13   13 Slot ControlLogix Chassis
1756-A17  17 slot ControlLogix Chassis

Power supply

AB PLC Power supply

The power supply is primarily used to provide power to a ControlLogix rack, whether a local or distributed I/O rack.

The power supply module is mounted on the leftmost side of the chassis.

Other different models are also available in the market as mentioned in the below table.

Model NumberRatings
1756-PA72 85-265 VAC Power Supply (10 Amp @ 5V)
1756-PA75  85-265 VAC Power Supply (13 Amp @ 5V)
1756-PB72   19-32 VDC Power Supply (10 Amp @ 5V)
1756-PB75 19-32 VDC Power Supply (13 Amp @ 5V)

CPU

1756-L71 is the most commonly used controller having 2 MB User Memory, 0.98 MB I/O Memory, USB Port, and a battery for backup.

1756-L72 is also one version with 4 MB of user memory.

Allen Bradley PLC CPU

1756- L61/L62 are earlier versions that are obsolete now. This CPU module has a key available for 3 different modes which we will discuss later in another article.

The CPU module has 1 built-in USB port used for programming, configuration, firmware update, and online edits only.

IO modules

1756 ControlLogix standard I/O modules require either a Removable Terminal Block (RTB) or an Interface module (IFM) like an Ethernet module to connect all field-side wiring.

RTBs and IFMs are not included with the I/O modules.

ControlLogix IO modules PLC

Different model numbers for AI cards are 1756-IF8, 1756-IF16, and more. So wherever you see ‘IF’, you can say it is an AI module, and the number after it denotes the channel number.

Similarly, the AO card’s model numbers are 1756-OF8, and 1756-OF16.

In the case of the DI module, model numbers are 1756-IB8, 1756-IB16, and more.  And for the DO module, model numbers are 1756-OB8, and 1756-OB16.

Redundancy module

The Allen-Bradley 1756-RM is a ControlLogix Redundancy module. This module may only be used with the ControlLogix platform to enable controller redundancy.

Allen Bradley Redundancy module

The redundancy module manages the connectivity of two identical controllers, installed in an identical rack of the same components and configuration.

This module provides redundancy system monitoring as well as module health via embedded LED displays such as PRI, COM, and OK.

ControlNet module

Now we need our system to be connected to a network also. For this purpose, the ControlNet module can be used.

1756-CNB is non-redundant while 1756-CNBR is a redundant type module.

ControlNet module

They have a special BNC connector for connecting to the network. The above image shows a redundant type of module as you can see 2 BNC connections given i.e. A & B.

The USB port is intended for temporary local programming purposes only and not intended for permanent connection.

Ethernet Module

1756-EN2TR is a part of the ControlLogix Communication Module series. It is an EtherNet/IP (Ethernet Industrial Protocol) dual-port interface communication module.

PLC Ethernet Module

The ethernet module supports general messaging, real-time I/O messaging, and information exchange for applications like Real-Time Control, Time Synchronization, and Motion.

The 1756-EN2TR also meets the CIP safety standard by allowing simultaneous transfer of safety and control data and diagnostics information.

ControlNet module uses advanced communication chips and physical media. The 1756-EN2TR Module has 10 – 100 Mbps EtherNet/IP communication rates and uses dual copper.

That’s all basis of an AB PLC ControlLogix 1756 series. I hope you enjoyed it & learned new things if you haven’t worked on AB PLC ControlLogix 1756 series.

If you liked this article, then please subscribe to our YouTube Channel for Electrical, Electronics, Instrumentation, PLC, and SCADA video tutorials.

You can also follow us on Facebook and Twitter to receive daily updates.

Read Next:

  • What is a Link Box?
  • Static UPS and Rotary UPS
  • Commissioning of VFD Drive
  • DOL Starter Working Principle
  • Motor Forward Reverse Control
Don't Miss Our Updates
Be the first to get exclusive content straight to your email.
We promise not to spam you. You can unsubscribe at any time.
Invalid email address
You've successfully subscribed !

Continue Reading

Motor Control Signal Interface
How to Wire a Field instrument to Control Room with Example
Sink or Source? Normally Open or Normally Closed?
Raw Counts to Engineering Units : Conversion Formula
Components of PLC
PLC Counters Program
Share This Article
Facebook Whatsapp Whatsapp LinkedIn Copy Link
Share
Leave a Comment

Leave a Reply Cancel reply

Your email address will not be published. Required fields are marked *

Stay Connected

128.3kFollowersLike
69.1kFollowersFollow
208kSubscribersSubscribe
38kFollowersFollow

Categories

Explore More

What is SCADA ? How does SCADA Works ?
How does SMPS Works? – Switched Mode Power Supply
Grounding or Earthing Scheme in DCS or PLC Systems
Micro PLC Hardware Configuration
Traffic Lights Ladder Diagram using Timers
Web-based SCADA HMI Software
Motor Feedback Fail Logic in PLC
Examples of PLC Programming using Boolean Functions

Keep Learning

PLC Program to Control Gas Pressure using Closed-Loop

PLC Program to Control Gas Pressure using Closed-Loop

Communication Protocols in PLC

Various Communication Protocols in PLC

Modbus in Industrial Networks

How Modbus is used in Industrial Networks?

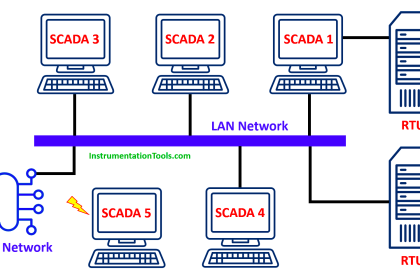

Networked SCADA Architecture

Types of SCADA System Architecture

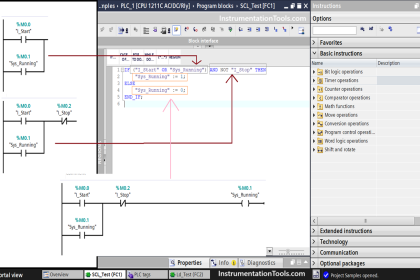

Learn SCL programming from scratch

How to Start Writing SCL Language in Siemens Tia Portal?

PLC Documents

PLC System Documentation

Introduction to Schneider PLC

Different Types of Schneider PLC

SCADA Standards

SCADA for Substation Automation

Learn More

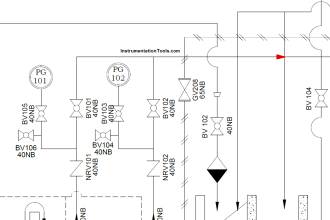

P&ID Legend

What is a Legend? – Piping and Instrumentation Diagram

HVAC Questions & Answers

HVAC Questions & Answers

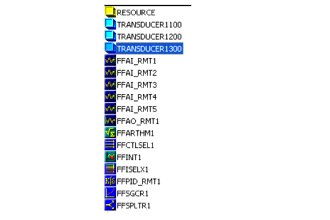

Fieldbus Transducer blocks
