What is Inter Discipline Check (IDC)?

Last updated: November 12, 2020 2:30 pm
Editorial Staff
Instrumentation Design
No Comments
Share
3 Min Read
SHARE

Inter Discipline Check (IDC) is an activity done by Design Engineers in Plant Design Companies. IDC is performed to ensure that the design and engineering output including supplier documentation is meeting the project design requirements by all related internal disciplines.

Contents
Inter Discipline Check (IDC)Chemical or ProcessMechanicalInter Discipline CheckPipingCivil and StructureElectrical

Inter Discipline Check (IDC)

Here we shall see which things to check from other discipline’s documents as an Instrumentation Engineer.

Chemical or Process

DOCUMENT – P&ID

Points to Check:

  • Instrument legend as per client / ISA standard (mainly for valves and flowmeters)
  • Process connection type and size
  • Instrument signal type identification – BPCS, SIS
  • Addition / Deletion of Specific notes
  • Line type – pneumatic, signal line, etc
  • Instrument Scope clarification – Vendor vs client, existing vs new instrument
  • Isolation valve requirement check
  • Instrument tagging Representation

Mechanical

DOCUMENT – VENDOR PACKAGE SPECIFICATION

Points to Check:

  • Preferred PLC make
  • Preferred Communication Protocol
  • HMI/SCADA
  • Control Panel Enclosure MOC
  • Interconnecting Cabling, Earthing cables, Wiring, and other Instrument items within the skid
  • All interconnecting tubing within the package.
  • Necessary Instrumentation & Controls, Instrumentation including interconnecting cable and safety devices

Inter Discipline Check

Skid/Packages

Points to Check:

  • Skid-mounted Junction boxes (as per SUPPLIER design) & interconnecting cabling for Instruments within the skid
  • Integration of skid/Package wiring in case of delivered in various sections/parts
  • Support to DCS Vendor
  • Specific Requirement i.e. IBR Certification for Boiler

DOCUMENT – Equipment GA/Datasheet/VDR

Points to Check:

  • Process Connection type – size
  • Cross-check with P&ID data & ensure data alignment in both the documents
  • Instrument Installation check i.e. Nozzle orientation for RADAR transmitter, support arrangement for capacitance type level switch
  • The requirement of Remote transmitter (internal point- I&C doc will be updated)
  • Check MOC – Optional
  • The requirement of Thermowell for Temperature measurement

DOCUMENT – Equipment Layouts

Points to Check:

  • JB / RIO / Control panel Installation (input)
  • Pipe Rack Requirements (input)
  • Cable tray support Requirements (input)

Common

Points to Check:

  • Cable tray routing inside the building
  • Control panel/JB near equipment/skid,
  • conduit routing,
  • instrument air tubing

Piping

DOCUMENT – 3D MODEL REVIEW

Points to Check:

  • Basic Instruments connection details
  • Cable tray routing on Pipe rack
  • Instruments as per hook up drawings

Civil and Structure

DOCUMENT – LAYOUTS

Points to Check:

  • Wall/Floor cut-out for cable tray routing

Electrical

DOCUMENT – LOAD LIST/LAYOUTS

Points to Check:

  • No of motors as per P&ID as Signal consideration for IO list
  • Cable tray layouts
  • Earth pit layout
  • Electrical room layout
  • Lighting Layout

Author: Kalpit Patel

Read Next:

  • Instrumentation Word Game
  • Intrinsic Safety Protection
  • Valve Safety Factor
  • Polarity of Voltage Drops
  • Air Consumption for Valves
Don't Miss Our Updates
Be the first to get exclusive content straight to your email.
We promise not to spam you. You can unsubscribe at any time.
Invalid email address
You've successfully subscribed !

Continue Reading

Flow Instruments – Selection, Principle & Application
Detail Design Engineering Competency Aspects
Vendor View of Supplying Industrial Process Control & Safety Systems
Relay Latching Circuit using Push Button
Instrumentation and Control Project Packages – Detail Engineering
Magnetic Flow Meter Corrosion Effects
Share This Article
Facebook Whatsapp Whatsapp LinkedIn Copy Link
Share
Leave a Comment

Leave a Reply Cancel reply

Your email address will not be published. Required fields are marked *

Stay Connected

128.3kFollowersLike
69.1kFollowersFollow
210kSubscribersSubscribe
38kFollowersFollow

Categories

Explore More

How to Prepare Pressure Gauge Datasheet ?
Field Instruments Selection Aid
Zener Diode Voltage Regulators
Pneumatic Valves and Cylinders Sizing – Part 2
What is Instrument DataSheet ?
Cable Routing
Why is Orifice Beta in between 0.3 to 0.7?
Control Room Design Guidelines

Keep Learning

Transmitter Performance and Calibration Frequency

How to Calculate Transmitter Performance and Calibration Frequency?

Instrument Panel Exhaust Fan Efficiency Improved

Instrument Panel Cooling Efficiency Enhancement

Instrument System Architecture and Process Control Design

System Architecture and Process Control Systems Philosophy

Kv-value of a valve is determined by a standardised test

Calculate Flow Coefficient Kv of Solenoid Valve

Thermowell Outer Diameter larger than Nozzle Inside Diameter

Thermowell Outer Diameter Larger than Nozzle Inside Diameter?

IS Loop Formula

Difference between Intrinsic Safe and Non-Intrinsic Safe Cables

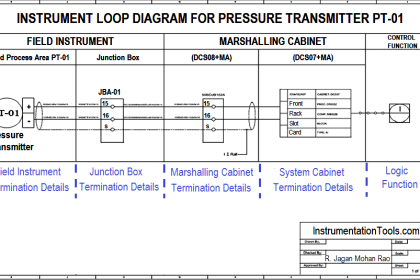

Instrument Loop Diagram

How-to Create Instrument Loop Diagram (ILD)?

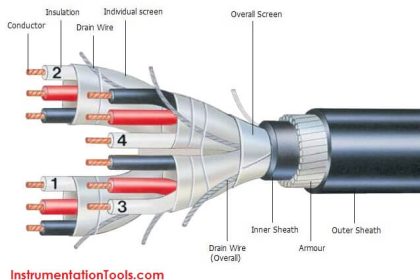

Basics of Cable Shields

Basics of Cable Shields

Learn More

Ladder Diagram Example using Memory Bits and Set Coils

Ladder Diagram Example using Memory Bits and Set Coils

Two SOV Connections

Two Solenoid Valves Working Principle

Troubleshooting Pump Control Circuit

Troubleshooting Pump Control Circuit

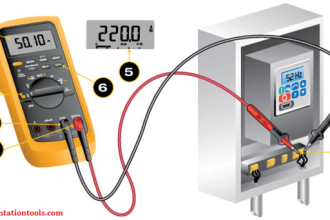

Measure Frequency using Multimeter

How to measure frequency using Multimeter

Convert Linear mA to Square root mA

Convert Linear Percentage to Square root Percentage

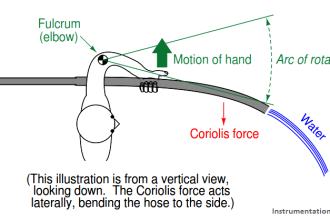

Coriolis flow meters
