What is the Purpose of Chemical Seals Pressure Transmitter?

Last updated: September 24, 2020 5:24 pm
Editorial Staff
Practical Questions
No Comments
Share
5 Min Read
SHARE

Some pressure instruments come equipped with chemical seals consisting of diaphragm units connected to the instrument with small-bore “capillary” tubing filled with a liquid such as silicone oil:

Contents
Pneumatic Differential Pressure TransmitterChemical Seals Pressure Transmitter

Pneumatic Differential Pressure Transmitter

Pneumatic differential pressure transmitter

Note: Pneumatic differential pressure transmitters are outdated. Now we have smart electronic transmitters. Consider above picture is only for educational purpose.

These seals may then be connected to a process vessel to measure pressure, at some distance from the transmitter:

Chemical Seals Pressure Transmitter

Chemical Seal Pressure Transmitter

For what purpose(s) do these seals function? What advantage(s) do they lend to the instrument in measuring pressure?

Answer:

Remote, chemical seals provide a means for pressure transmitters to measure the pressure of extremely corrosive process fluids. The only portions of the instrument in contact with the process fluid are the seal elements themselves: their housings and diaphragms. The capillary tubing connecting the seals to the transmitter contain only clean oil, as does the transmitter itself.

Now you’re probably wondering, “What’s the point of using a remote diaphragm to contact the process fluid? If the fluid were too corrosive for the transmitter, wouldn’t it be too corrosive for the remote seal diaphragm as well? And if a remote seal can be made to withstand the corrosive effects of the fluid, then why not a regular transmitter?”

For one, pressure transmitters (especially the motion-balance kind) are limited in the kinds materials their pressure elements may be constructed of. The pressure element (bellows, diaphragm, bourdon tube) must be made of a material with good elastic properties, and that usually means a fairly narrow range of metals. The seal diaphragms, on the other hand, are designed to be “slack.”

That is, they are not supposed to provide any spring resistance to motion, but be limp and transfer all the process pressure to the transmitter’s sensing element. Because they need not function as spring elements, their elastic properties are not as critical as for the transmitter’s sensing element, and this allows a wider range of materials with different corrosion resistances. In some cases, the remote diaphragm may be non-metallic, and thus have corrosion resistance properties very different from that of a metal.

Even if the seal diaphragms are metallic, like the transmitter’s sensing element, there is still good reason to use chemical seals in some applications. With a normal pressure transmitter mounted remotely from the process vessel, some kind of tubing will be necessary to transfer fluid pressure to it from the vessel.

The range of available materials for instrument tubing is far more limited than the range of materials for seal diaphragms or even transmitter sensing elements. It may be that even the best instrument tubing cannot tolerate the corrosive effects of the process fluid, but a seal diaphragm made of some exotic metal alloy can. Using remote seals and capillary tubes filled with nice, clean oil neatly solves the problem, containing the process fluid within the seals and not allowing it to enter the tubing.

Another, entirely different, reason for using remote seals is in food processing, where no “pockets” are allowed in the fluid system due to the need for regular disinfection and decontamination. Standard ∆P transmitter capsule assemblies and impulse tubing would create cavities for bacteria to collect and grow in nutrient-rich fluid. Remote seals present a flat surface to the process fluid, transmitting the pressure to the fill fluid where bacteria cannot enter.

A similar reason for using remote seals is to avoid plugging. With standard “impulse” tubes connecting a process vessel or pipe to a transmitter, there exists the possibility of sediment or debris plugging the tubes. However, flush-mounted remote seals provide no place for sediment or debris to collect.

Share your answers with us through below comments section.

Read Next:

  • Span of Pressure Gauge
  • Instrumentation MCQ
  • Pressure Gauge Datasheet
  • DP Gauge across the Filter
  • Pressure Gauge Selection

Credits: Tony R. Kuphaldt

Don't Miss Our Updates
Be the first to get exclusive content straight to your email.
We promise not to spam you. You can unsubscribe at any time.
Invalid email address
You've successfully subscribed !

Continue Reading

Problem with Pirani Gauge
Measure the Temperature of the RTD
Troubleshoot Allen Bradley PLC Logic
Define Normal Status of a Process Switch ?
Determine the Instrument Calibration Error
Programmable Logic Controller (PLC) Questions and Answers – 13
Share This Article
Facebook Whatsapp Whatsapp LinkedIn Copy Link
Share
Leave a Comment

Leave a Reply Cancel reply

Your email address will not be published. Required fields are marked *

Stay Connected

128.3kFollowersLike
69.1kFollowersFollow
208kSubscribersSubscribe
38kFollowersFollow

Categories

Explore More

Instrument Lab Exercise – Ranging and Manometer Usage
Calculate Density and Specific Gravity
Programmable Logic Controller (PLC) Questions and Answers – 11
Baffle Nozzle Assembly Sensitive Mechanism
Pressure Transmitter using Potentiometer and Diaphragm
Stripper Overhead Temperature Control System
Practical Process Control System Questions & Answers – 3
DP Transmitter Located 10 feet Beneath the Vessel

Keep Learning

Bourdon Tube Gauge Spiral Spring

What is the Purpose of Bourdon Tube Gauge Spiral Spring?

Air Pressure Regulator cut-away diagram

Air Pressure Regulator Questions

Ladder Diagram circuit

PLC Practice Questions

Determine the statuses of all lamps and relay coils in the circuit

Determine the Status of Lamps and Relays in the Circuit ?

DP transmitter Elevated 10 Feet above the Vessel

DP transmitter Elevated 10 Feet above the Vessel

Signal Strength of Guided-wave Radar Level Instrument

Signal Strength of Guided-wave Radar Level Instrument

float-type level switch control a pump

Float-type Level Switch to Control a pump

Steam Eductor Question

Steam Eductor Question

Learn More

Repeat Safety Valve Popping

Repeat Safety Valve Popping caused Urea Plant Shutdown

Distributed Control System Questions and Answers

Distributed Control System Objective Questions

Process flow diagram examples

What is Process Flow Diagram (PFD) ?

Core-Type Transformer

Transformer Turns Ratio

PLC Program for Positive edge pulse output for one scan cycle

PLC Program for Positive Edge Pulse Output for One Scan Cycle

Basic Configuration of Motor Operated Valve

Rotork Motor Operated Valve Basic Configuration

Interview Questions and Answers

Electrical Machines Interview Questions and Answers

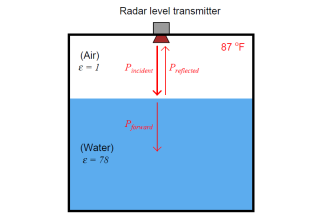

Calculate Incident Power in Radar Level Measurement
