SIS Emergency Block Valves (EBV)

In Safety Instrumented System (SIS), Emergency Block valves isolate the process plant completely in the event of any hazardous condition.

Last updated: May 20, 2022 12:13 am
Editorial Staff
Safety Instrumented System (SIS) Control Valves
No Comments
Share
5 Min Read
SHARE

In Safety Instrumented System (SIS), Emergency Block valves are very critical to plant to isolate the process completely in the event any hazardous condition happens which requires the process to be shut for the safety of the personnel & equipment.

Contents
Emergency Block ValvesEBVs LocationEBV MarkingEBV TestingProof Testing of Emergency Block ValveGeneric Rules for EBV

EBVs are part of the mitigation layer and operate after a hazard.

Emergency Block Valves

An Emergency Block Valve (EBV) provides positive isolation of equipment, tanks, vessels, or piping, through operator intervention.

EBVs requirements, function in detail:

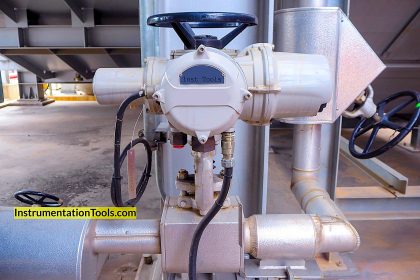

  • EBVs can be manually or remotely operated ON/OFF valve or MOV (Motor Operated Valve)
  • EBV is required to be operated in an emergency situation that has already developed.  i.e., they are not preventive layers, but these are mitigation layers.
  • EBV can also be part of the Safety Instrumented System or Basic Process Control System. Under such cases, these valves need to have a manual override to Close these valves irrespective of SIS or BPCS action.
  • MOV that are remotely operated EBV, the selector switch of such valves shall always be kept in Remote position. If the same valve is required to be changed to Local mode, it needs to go through bypass approvals.
SIS Emergency Block Valves (EBV)
Image Courtesy: Bray

EBVs Location

As Emergency Block valves are the major isolation source in plants, EBVs are typically located at

  • Battery Limits
    • Loading / Unloading Stations
    • Compressor Suction / Discharge
    • Pumps
    • Storage & Process vessels
    • Reactors and Columns
    • Tank bunds

EBV Marking

EBV shall be identified in the Piping & Instrumentation Drawings and tagged in the field as Block valve (with the standard tag plate per standard) and shall be included as part of the plant emergency response procedure.

EBV Testing

EBV shall be tested at a certain frequency (typically <= 5Y). If EBV is also Safety Instrumented System / Basic Process Control System, then the testing requirement as per SIS/BPCS will apply

As part of SIS testing requirements, EBV needs to have:

  1. Visual Inspection
  2. Proof testing
  3. Overhauling

Proof Testing of Emergency Block Valve

Proof testing of Emergency Block Valve is typically For Automated valves: Stroke check @ 5Years and for Manual valves Operability check @ 3 years

Emergency Block Valves are required to operate after an event has happened and hence for these EBV’s the Maximum Allowable Leakage Rate (MALR) is considered very high.

Hence Function test (Stroke test) can be considered as a Proof test with less diagnostic coverage (also known as the Imperfect proof test) and the Seat leakage test can be deferred until the Overhaul time.

Because of the imperfect proof testing (where the seat leakage during proof testing is not verified), Seat leakage for EBV are considered to be under “Deferred Seat Leakage”.

Hence EBVs need to be tested for Seat leakage at a frequency of about 16 years (for clean service). This frequency can be less, approximately 8 years (if the application is severe).

Generic Rules for EBV

In cases where an EBV is required to continue to function during a fire, it shall be of fire-safe or fire-protected design.

EBVs shall be identified in the Maintenance documentation (e.g. in ERP/SAP or equivalent maintenance tracking).

In-line testing of EBVs is preferred.

Partial stroke testing may help to extend the required full test intervals.

Plant and site emergency responders shall be trained on the location of manually operated EBVs.

If you liked this article, then please subscribe to our YouTube Channel for Electrical, Electronics, Instrumentation, PLC, and SCADA video tutorials.

You can also follow us on Facebook and Twitter to receive daily updates.

Read Next:

  • What is HIPPS System?
  • SIS Audit & Assessment
  • Automated Block Valves
  • SIS Failures and Reliability
  • SIS Bypass and Impairment
Don't Miss Our Updates
Be the first to get exclusive content straight to your email.
We promise not to spam you. You can unsubscribe at any time.
Invalid email address
You've successfully subscribed !

Continue Reading

Solenoid Valve Functional Testing

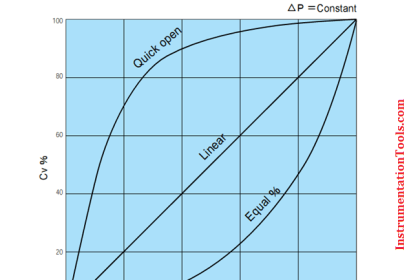

Valve Characteristics – Quick Opening, Linear & Equal Percentage
Difference between Quick Opening, Linear & Equal Percentage Control Valve characteristics
Common Terms Used in Control Valves
Concept of Redundancy in Control Systems
Different Types of Control Valve Actuators
Share This Article
Facebook Whatsapp Whatsapp LinkedIn Copy Link
Share
Leave a Comment

Leave a Reply Cancel reply

Your email address will not be published. Required fields are marked *

Stay Connected

128.3kFollowersLike
69.1kFollowersFollow
210kSubscribersSubscribe
38kFollowersFollow

Categories

Explore More

Basics of Butterfly Valves
Difference between Blowdown Valve (BDV) and Shutdown Valve (SDV) ?
Over Pressure cases for Pressure Relief Valve Sizing
Control Valve Cv calculation
SIS Final Control Elements
Control Valve Working Animation
Control Valve Trim Characteristics
Control Valve Performance with Constant Pressure

Keep Learning

Common Cause Failure in Safety Instrumented System

Common Cause Failure – Safety Instrumented System

Pneumatic Valves Questions & Answers

Pneumatic Valves Questions & Answers

Control Valves Questions and Answers

Control Valve Questions and Answers

Flapper nozzle system

What is Flapper Nozzle System ?

Valve Seat leakage Test

Valve Seat Leakage Test

3-way-2-position-solenoid-valve-spring-return

Pneumatic Directional Control Valves

Valve Non-rising Stems

Valve Functions and Basic Parts of Valve

Speed of Power Actuators

Speed of Actuators

Learn More

Power Electronics Objective Questions

Three Phase Bridge Inverters Objective Questions

HVAC Refrigeration Cycle

HVAC Refrigeration Cycle

dead-weight-tester-principle

What is a Dead Weight Tester?

Calibration of Pyrometers using Black Body

Calibration of Pyrometers using Black Body

Digital Electronics MCQ

Digital Integrated Circuits Objective Questions – Part 3

Control Valve Tips and Tricks

Control Valve Tips and Tricks

Nuclear Magnetic Resonance Spectrometer Questions and Answers

Nuclear Magnetic Resonance Spectrometer Questions & Answers

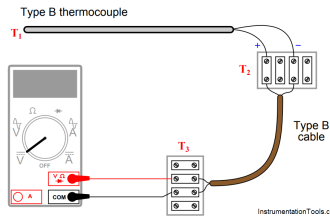

Thermocouple measurement and reference junction temperatures
