Practical Process Control System Questions & Answers – 1

Last updated: February 14, 2019 9:28 am
Editorial Staff
Practical Questions
2 Comments
Share
3 Min Read
SHARE

Consider this control system, set up to maintain the temperature of a chemical reactor vessel at a constant (“setpoint”) value.

The reactor’s source of heat is a steam “jacket” where hot steam is admitted through a motor-operated (M) control valve (TV) according to the temperature inside the reactor sensed by the temperature transmitter (TT):

Practical Control Systems Questions & Answers

You arrive at work one day to find the operator very upset. The last batch of product emptied from the reactor was out of spec, as though the temperature were too cold, yet the controller (TIC) displays the temperature to be right at setpoint where it should be: 175 oF.

Your first step is to go to the reactor and look at the temperature indicating gauge (TI) mounted near the same point as the temperature transmitter. It registers a temperature of only 137 oF.

From this information, determine what is the most likely source of the problem, and explain how you made that determination.

More Questions :

  1. Why was it a good decision to consult the temperature gauge (TI) on the reactor as a first diagnostic step?
  2. Suppose a fellow instrument technician were to suggest to you that the problem in this system could be a controller configured for the wrong action (e.g. direct action instead of reverse action). Do you think this is a plausible explanation for the symptoms reported here? Why or why not?
  3. Could the problem be that someone left the controller in manual mode rather than automatic mode as it should be? Explain why or why not.
  4. Based on the P&ID shown, are the instruments pneumatic or electronic?
  5. Given the fact that we know this reactor is steam-heated, is it possible to conclude that the chemical reaction taking place inside it is either endothermic (heat-absorbing) or exothermic (heat-releasing)?
  6. Safety shutdown systems often use a “two-out-of-three” (2oo3) voting algorithm to select the best measurement from three redundant transmitters. Explain how this same concept may be applied by the instrument technician in the course of troubleshooting the problem.

Share Your Answers via Comments

More Questions & Answers :
Practical Process Control System Questions & Answers – 1
Practical Process Control System Questions & Answers – 2
Practical Process Control System Questions & Answers – 3
Practical Process Control System Questions & Answers – 4
Practical Process Control System Questions & Answers – 5
Practical Process Control System Questions & Answers – 6
Practical Process Control System Questions & Answers – 7
Practical Process Control System Questions & Answers – 8
Practical Process Control System Questions & Answers – 9
Practical Process Control System Questions & Answers – 10
Don't Miss Our Updates
Be the first to get exclusive content straight to your email.
We promise not to spam you. You can unsubscribe at any time.
Invalid email address
You've successfully subscribed !

Continue Reading

PLC Switch Actuation Status
Practical Process Control System Questions & Answers – 12

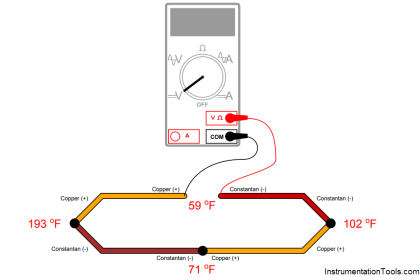

Calculate Process Temperature using a Thermocouple
Calculate Total Hydrostatic Pressure at Bottom of Vessel
Draw the Symbols for Liquid Level Measuring Instruments
Float-type Level Switch for Sensing Low Oil Level
Share This Article
Facebook Whatsapp Whatsapp LinkedIn Copy Link
Share
2 Comments
  • walid says:
    February 14, 2019 at 9:34 am

    good web site and useful

    Reply
  • Richard says:
    January 24, 2020 at 4:02 pm

    For someone like who is learning, how do I get the right answers to the questions and learn from them

    Reply

Leave a Reply Cancel reply

Your email address will not be published. Required fields are marked *

Stay Connected

128.3kFollowersLike
69.1kFollowersFollow
210kSubscribersSubscribe
38kFollowersFollow

Categories

Explore More

What is the Simple Alternative Vessel Level Indication?
How to Draw a Schematic Diagram ?
Stripper Overhead Temperature Control System
Which Instrument is Faulty? Transmitter, Recorder, or Controller
Instrument Salesperson Question
Calculate the Transmitter Values
Calculate the 0%, 50%, and 100% Calibration Points
Galileo Thermometer

Keep Learning

Electronic Pressure Sensor with Bourdon Tube and LVDT

Electronic Pressure Sensor with Bourdon Tube and LVDT

How Nuclear Radiation is used to Measure Coke Dust Level?

How Nuclear Radiation is used to Measure Coke Dust Level?

measure the temperature of RTD

Measure the Temperature of the RTD

Flapper nozzle system

Flapper Nozzle Questions

Differential Capacitance Pressure Sensor Circuit

Differential Capacitance Pressure Sensor Circuit

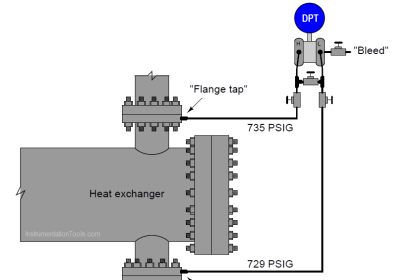

Determine the Pressure at Each Port of DP Transmitter
