Allen Bradley PLC Interview Questions and Answers

Allen Bradley PLC Interview Questions : This article covers Allen Bradley PLC programming interview questions and answers. Visit InstrumentationTools.

Last updated: November 2, 2023 4:02 pm
Editorial Staff
Instrumentation Interview Questions PLC Tutorials
3 Comments
Share
6 Min Read
SHARE

Allen Bradley PLC Interview Questions and Answers : This article covers industrial automation interview questions and answers which covers basically AB PLC related questions and answers

Contents
Allen Bradley PLCWhat are the PLC ranges available in Rockwell?What are the software Used with AB?What is use of RS Linx software?What is use of RS Logix software?What file gets created in PC for RS Logix PLC program?How to creating linkage between PLCs and PLC programming software?Hardware configuration (PLC and I/Os)What is the meaning of Upload and Download?What are the various communication interfaces supported by AB?Give information about DH, Control Net, DeviceNet and Ethernet protocol.What is latency in communication?How the communication protocols are distinguished?Comparison between various Protocols used with ABIs Allen Bradley Rockwell?What is RSLogix?Who owns Rockwell Automation?

Allen Bradley PLC

Allen Bradley PLC Interview Questions & Answers

Programmable Logic Controller – Allen Bradley

What are the PLC ranges available in Rockwell?

  1. Pico : Non modular small PLCs
  2. Micrologix 1000, 1200 and 1500 Series
  3. SLC : SLC 5/01, 5/02, 5/03
  4. Control Logix Flex Logic and Soft PLC

What are the software Used with AB?

  • For Pico soft for Pico PLC programming
  • RS Logix 500 for Micrologix and SLC PLCs programming
  • RS Logix 5000 for Control Logix PLCs programming
  • SCADA – RS View earlier Control View

What is use of RS Linx software?

RS Linx software is used to perform following tasks.

  • Configure communication drivers
  • View configured drivers and active nodes
  • Enable communication tasks such as uploading, downloading, going online, updating firmware and sending messages.

What is use of RS Logix software?

RS Logix is a PLC programming software. It contains all the instructions needed for PLC programming.

We can develop the program, down load / upload the program, work on line / off line and force the I/Os using the software.

  • RS Logix 500 is used for Micrologix and SLCs
  • RS Logix 5000 is used for Control Logix PLCs

What file gets created in PC for RS Logix PLC program?

The extension of the file will be .rss. So if you create an application with “Demo” name the file created will be “Demo.rss”.

By default it will be stored in “c:\Program Files\RockwellSoftware/RS Logix 500 Eng location.

How to creating linkage between PLCs and PLC programming software?

The RS Linx software is used for linking the PLC and software Either you can manually configuration the communication settings or By using Auto Configure facility the software will detect the communication settings automatically.

Hardware configuration (PLC and I/Os)

  1. Manual configuration
  2. Auto detect

What is the meaning of Upload and Download?

  • Upload means transferring the program data from PLC to PC
  • Download means transferring the program data from PC to PLC

What are the various communication interfaces supported by AB?

The commonly used communication protocol in AB includes DH+, DH485, ETH, Modbus, Device Net and Control Net.

Give information about DH, Control Net, DeviceNet and Ethernet protocol.

Data Highway:

The proprietary data network used by Allen Bradley PLCs to communicate information to and from other PLCs on the network or to and from host computers attached to the network.

ControlNet:

A real-time, control-layer network providing high-speed transport of both time- critical IO data and messaging data, including upload/download of programming and configuration data and peer-to-peer messaging, on a single physical media link

DeviceNet:

A low-cost communication link that connects industrial devices to a network. It is based on broadcast-oriented communication protocol – the Controller Area Network (CAN).

Ethernet:

The standard for local communications networks developed jointly by Digital Equipment Corp., Xerox, and Intel. Ethernet base band coaxial cable transmits data at speeds up to 10 megabits per second.

Ethernet is used as the underlying transport vehicle by several upper-level protocols, including TCP/IP.

What is latency in communication?

The delay time between the end of one communication and the start of another.

During this time, the processes associated with the communication are hung up and cannot continue. The latency has to be minimum.

How the communication protocols are distinguished?

The protocols are distinguished with following specifications

No. of nodes supported, total network length , Speed of communication .

Comparison between various Protocols used with AB

various Protocols used with AB PLC

Is Allen Bradley Rockwell?

Allen–Bradley is the brand-name of a line of Factory Automation Equipment manufactured by Rockwell Automation (NYSE ROK).

What is RSLogix?

The RSLogix™ family of IEC-1131-compliant ladder logic programming packages helps you maximize performance, save project development time, and improve productivity.

Who owns Rockwell Automation?

Rockwell Automation traces its history to 1903 and the formation of the Compression Rheostat Company, founded by Lynde Bradley and Dr. Stanton Allen with an initial investment of $1000. In 1904, 19-year-old Harry Bradley joined his brother in the business.

If you liked this article, then please subscribe to our YouTube Channel for PLC and SCADA video tutorials.

You can also follow us on Facebook and Twitter to receive daily updates.

Read Next:

  • Top Electrical Engineering Questions & Answers
  • Allen Bradley RSLogix 500 PLC Programming
  • PLC Program to Control Level of Two Tanks
  • Siemens S7 300 and STEP 7 PLC program using SIMATIC Software
  • PLC Program to Heat and Bend Glass Tubes
Don't Miss Our Updates
Be the first to get exclusive content straight to your email.
We promise not to spam you. You can unsubscribe at any time.
Invalid email address
You've successfully subscribed !

Continue Reading

Tia Portal – OB30 Cyclic Interrupt Organization Block
Control Valve Interview Questions and Answers
PLC Timer Application in Security Camera Recording
PID in Studio 5000
Documentation and Change Control of PLC or DCS Systems
What is Loop Checking?
Share This Article
Facebook Whatsapp Whatsapp LinkedIn Copy Link
Share
3 Comments
  • Waseem Ahmad says:
    February 1, 2017 at 6:29 pm

    it’s really good helpful for us

    Reply
  • M R RAVI CHANDRAN says:
    February 2, 2017 at 1:45 pm

    it is very useful to every one in instrumentation field

    Reply
  • Ahmed Mongy says:
    April 11, 2018 at 2:10 pm

    very nice and useful.

    Reply

Leave a Reply Cancel reply

Your email address will not be published. Required fields are marked *

Stay Connected

128.3kFollowersLike
69.1kFollowersFollow
208kSubscribersSubscribe
38kFollowersFollow

Categories

Explore More

Siemens S7 1200 PLC configuration in TIA Portal
T-Junction Traffic Control System – PLC Programming
SCADA Software and their Comparison
Draw a Ladder Logic to switch ON-OFF a Bulb using a Toggle Switch ?
PLC Program for Artificial Fishpond Water Level Monitoring System
Free Industrial Control System (ICS) Cyber Security Training Course
Siemens Drum block for Sequencer Operation
SCADA Engineer Job Responsibilities and Skills

Keep Learning

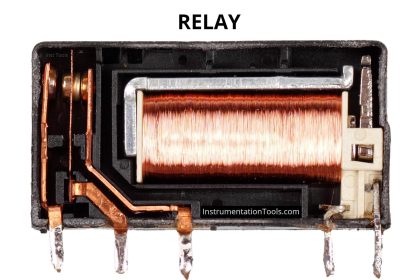

Basic Concepts of the Safety Relay

Basic Concepts of the Safety Relay

different PLC brands of Distributed IO

What is Distributed IO? – Decentralized Peripherals in PLC

Studio 5000 Programming Three Motors with Fixed Priorities

Studio 5000: Programming Three Motors with Fixed Priorities

PLC Power Supply and Operating Voltages

PLC Power Supply and Operating Voltages

PLC Program to Count and Pack Parts from conveyor

Count and Pack Objects from Conveyor using PLC Ladder Logic

FBD Logic

Why different PLC Programming Languages were Developed?

Free Schneider PLC Training - Automation Course

Free Schneider PLC Training – Automation Course

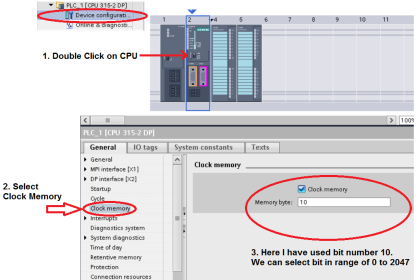

Siemens CPU Clock Memory

Alarm Acknowledge using PLC

Learn More

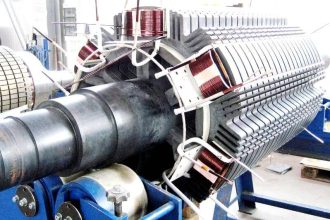

Rotor Angle Stability of Synchronous Generators in Power System

Rotor Angle Stability of Synchronous Generators in Power System

PLC Automation for Product Weighing and Labeling

PLC Controlled Conveyor and Weighing with Labeling Automation

PID Tuning recommendations

PID Tuning Recommendations based on Process Dynamics

Three Valve Manifold

3 Valve Manifold Operation

Differential Pressure Switch Principle

Differential Pressure Switch Principle

Heat Flow Balance Systems Objective Questions

Heat Flow Balance Systems Objective Questions

Control Valve flow coefficient (Cv)

Why we Measure Control Valve flow coefficient (Cv)?

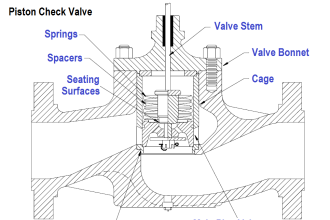

Piston Check Valve
