How to do Continuity Testing using Multimeter

Last updated: April 27, 2017 4:21 am
Editorial Staff
Electronic Basics
No Comments
Share
3 Min Read
SHARE

Continuity Testing using MultimeterContinuity Testing using Multimeter

  1. Turn the dial to Continuity Test mode ( Continuity Mode ). It will likely share a spot on the dial with one or more functions, usually resistance (Ω). With the test probes separated, the multimeter’s display may show OL and Ω.
  2. If required, press the continuity button.
  3. First insert the black test lead into the COM jack.
  4. Then insert the red lead into the V Ω jack. When finished, remove the leads in reverse order: red first, then black.
  5. With the circuit de-energized, connect the test leads across the component being tested. The position of the test leads is arbitrary. Note that the component may need to be isolated from other components in the circuit.
  6. The digital multimeter (DMM) beeps if a complete path (continuity) is detected. If the circuit is open (the switch is in the OFF position), the DMM will not beep.
  7. When finished, turn the multimeter OFF to preserve battery life.

Continuity testing overview

  • Continuity is the presence of a complete path for current flow. A circuit is complete when its switch is closed.
  • A digital multimeter’s Continuity Test mode can be used to test switches, fuses, electrical connections, conductors and other components. A good fuse, for example, should have continuity.
  • A DMM emits an audible response (a beep) when it detects a complete path.
  • The beep, an audible indicator, permits technicians to focus on testing procedures without looking at the multimeter display.
  • When testing for continuity, a multimeter beeps based on the resistance of the component being tested. That resistance is determined by the range setting of the multimeter. Examples:
    • If the range is set to 400.0 Ω, a multimeter typically beeps if the component has a resistance of 40 Ω or less.
    • If the range is set 4.000 kΩ, a multimeter typically beeps if the component has a resistance of 200 Ω or less.
  • The lowest range setting should be used when testing circuit components that should have low-resistance value such as electrical connections or switch contacts.

Continuity Mode in Multimeter

Source : Fluke

Also Read: Measure Frequency using Multimeter

Don't Miss Our Updates
Be the first to get exclusive content straight to your email.
We promise not to spam you. You can unsubscribe at any time.
Invalid email address
You've successfully subscribed !
Difference Between Common Cathode and Common Anode 7 Segment LED Display?
What is Contactor ?
How to measure frequency using Multimeter
Types of Potentiometers – What is a Potentiometer? – Applications
Clamp Meters Working Principle
Share This Article
Facebook Whatsapp Whatsapp LinkedIn Copy Link
Share
Leave a Comment

Leave a Reply Cancel reply

Your email address will not be published. Required fields are marked *

Stay Connected

128.3kFollowersLike
69.1kFollowersFollow
208kSubscribersSubscribe
38kFollowersFollow

Categories

Recent Comments

  • Guifty Shimica on Top Non-PLC Certification Courses for Automation Professionals
  • Guifty Shimica on Top Non-PLC Certification Courses for Automation Professionals
  • MIHARITSOA Aina Sitraka on Top Non-PLC Certification Courses for Automation Professionals
  • Vaishnavi on Free Instrumentation Course for Trainee Engineers

Related Articles

Switched Mode Power Supply (SMPS)

How does SMPS Works? – Switched Mode Power Supply

Relay Parts

NO vs NC Contact

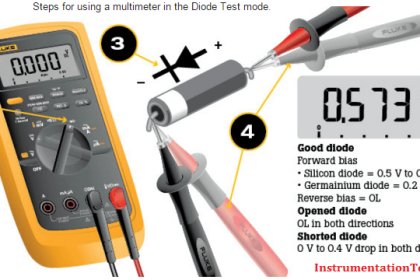

How to Test Diodes Using Multimeter
