Electric Circuits Objective Questions
0%

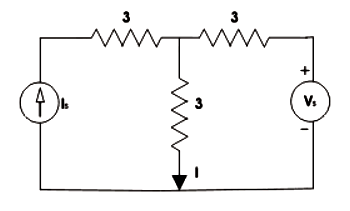

Consider the following circuit. In this circuit, when V_{s} = 3 V, I = 4 A, what is the value of I when V_{s} = 12 V?
Correct!
Wrong!

In Cauer 1st form last element in the network is
Correct!
Wrong!

The rms value of the voltage U(t)= 3 + 4cos(3t)
Correct!
Wrong!

A 35 V source is connected to a series circuit of 600 Ω and R as shown. If a voltmeter of internal resistance 1.2 kΩ is connected across 600 Ω resistor, it reads 5 V. The value of R is
Correct!
Wrong!

Kirchhoffs laws are valid for
Correct!
Wrong!

In active filter which element is absent?
Correct!
Wrong!

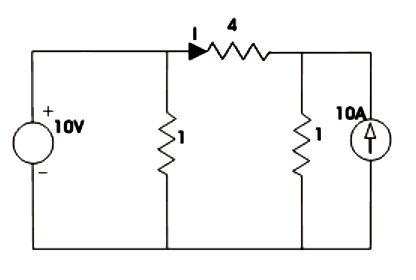

In the network shown, what is the current I in the direction shown?
Correct!
Wrong!

For the circuit shown in the given figure the current I is given by
Correct!
Wrong!

Say A point has an absolute potential of 40 V and point B has an absolute potential of  10 V, then what will be the value of V_{BA} ?
Correct!
Wrong!

Can a 250 V, 5 A single way switch be used in place of a 250 V, 15 A Switch?
Correct!
Wrong!

A coil of negligible resistance has an induction of 100 mH. The current passing through the coil changes from 2 A to 4 A at a uniform rate in 0.1 sec the voltage across the coil during this time would be _____________ V.
Correct!
Wrong!

The phase angle difference between current and voltage is 90°, the power will be
Correct!
Wrong!

Kirchhoffs second law is based on law of conservation of
Correct!
Wrong!

The value of supply voltage for 400 W, 4 Ω load is
Correct!
Wrong!

A circuit with resistor, inductor, capacitor in series is resonant of 50 Hz. If all the values are now doubled, the new resonant frequency is
Correct!
Wrong!

Link in network theory refers to
Correct!
Wrong!

Which of the following can not be connected in series unless they are identical?
Correct!
Wrong!

An electrical circuit with 10 branches and 7 nodes will have
Correct!
Wrong!

What is represented by the hypotenuse of impedance triangle?
Correct!
Wrong!

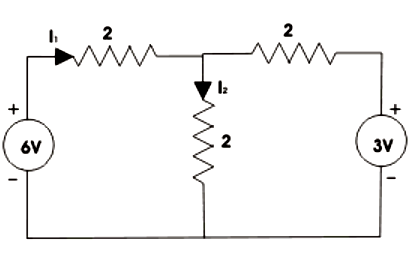

In the circuit shown in figure if I_{1} = 1.5 A, then I_{2} will be
Correct!
Wrong!

Disadvantages of constant k type filter
Correct!
Wrong!

If emf in a given circuit is given by e = 100sin628t, then maximum value of voltage and frequency will be
Correct!
Wrong!

In what connection we get neutral?
Correct!
Wrong!

A current of 4 A flows in an AC circuit when 100 V DC is applied to it whereas it takes 250 V AC to produce the same current the power factor of the circuit is
Correct!
Wrong!

In the circuit shown in the figure, the value of V_{s} is 0, when I = 4 A. The value of I, when V_{s} = 16 V, is
Correct!
Wrong!

Advantage of active filter is
Correct!
Wrong!

Whenever current is supplied by a source its terminal voltage
Correct!
Wrong!

The voltage across R and L in a series RL circuit are found to be 200 V and 150 V respectively. The rms value of the voltage across the series combination is __________________ V.
Correct!
Wrong!

If one cycle of AC waveform occurs every millisecond, the frequency will be
Correct!
Wrong!

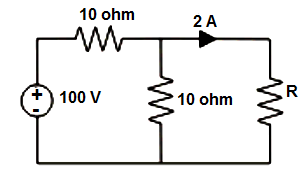

In given figure, the value of resistance R in Ω is
Correct!
Wrong!
