Electric Circuits Objective Questions
0%
A current of 4 A flows in an AC circuit when 100 V DC is applied to it whereas it takes 250 V AC to produce the same current the power factor of the circuit is
Correct!
Wrong!

Whenever current is supplied by a source its terminal voltage
Correct!
Wrong!

A particular current is made up of two component : a 10 A and a sine wave of peak value 14.14 A. The average value of current is
Correct!
Wrong!

A series circuit consists of R = 20 Ω, L = 20 mH, and AC supply 60 V with f = 100 Hz. The voltage drop across L is
Correct!
Wrong!

Kirchhoffs second law is based on law of conservation of
Correct!
Wrong!

A branch of a network is said to be passive when it contains
Correct!
Wrong!

If a resistor and an inductor are connected in series across a voltage source. Which two parameters in that circuit increase if frequency of voltage source increases?
Correct!
Wrong!

A series circuit consists of R = 20 Ω, L = 20 mH, and AC supply 60 V with f = 100 Hz. The voltage drop across R is
Correct!
Wrong!

A series circuit consists of R = 20 Ω, L = 20 mH, and AC supply 60 V with f = 100 Hz. The current in R is
Correct!
Wrong!

1 F is theoretically equal to
Correct!
Wrong!

If all the elements in a particular network are linear, then the superposition theorem would hold, when the excitation is
Correct!
Wrong!

The internal resistance of a practical voltage source is considered to be connected in
Correct!
Wrong!

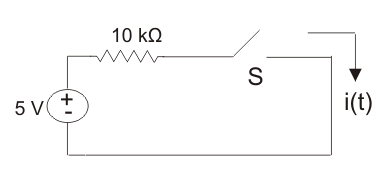

The switch S is the circuit shown in figure is ideal. If the switch is repeatedly closed for 1 ms and opened for 1 ms, the average value of i(t) is
Correct!
Wrong!

An RLC series circuit resonates at a frequency ωr. The ratio of ( ωr L) / R is 10. The variable frequency voltage applied to the circuit is 20 sin(ωt + π/ 3). The voltage measured across the capacitance
Correct!
Wrong!

Which of the following can not be connected in series unless they are identical?
Correct!
Wrong!

The voltage across R and L in a series RL circuit are found to be 200 V and 150 V respectively. The rms value of the voltage across the series combination is __________________ V.
Correct!
Wrong!

A series circuit consists of R = 20 Ω, L = 20 mH, and AC supply 60 V with f = 100 Hz. The phase angle of current in respect of supply voltage will be
Correct!
Wrong!

If a resistor and an inductor are connected in series across a voltage source. Which two parameters in that circuit decrease if frequency of voltage source increases?
Correct!
Wrong!

If a resistor and a capacitor are connected to form series R  C circuit across a voltage source. If frequency of voltage source increases
Correct!
Wrong!

The linear circuit element is
Correct!
Wrong!

Power dissipation in ideal inductor is
Correct!
Wrong!

Magnetic flux has the unit of
Correct!
Wrong!

Which of the following characteristics is attributed to an ideal independent voltage source?
Correct!
Wrong!

The energy required to charge a 10 µF capacitor to 100 V is
Correct!
Wrong!

A branch of a network is said to be active when it consists of one
Correct!
Wrong!

The resistivity of the conductor depends on
Correct!
Wrong!

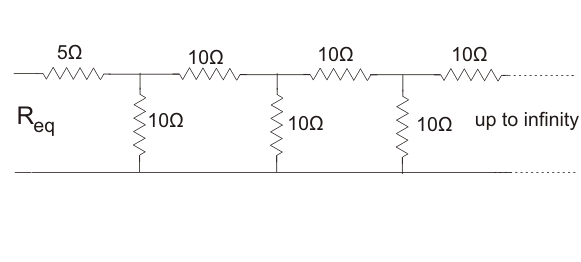

In the circuit given below the value of resistance R_{eq} is
Correct!
Wrong!

In balanced bridge, if the positions of detector and source are interchanged, the bridge will still remain balanced. This can be explained from which theoem
Correct!
Wrong!

Which of the following is not a bilateral?
Correct!
Wrong!

Dependent source of current and voltage are those which have
Correct!
Wrong!
