1P-Diode Full Wave Rectifier Questions and Answers – Part 2

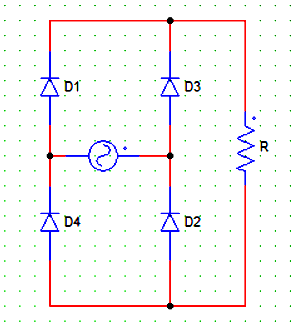

Choose the correct statement regarding the below given circuit.

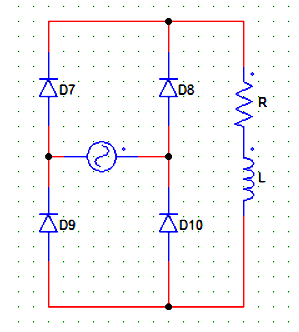

For the circuit shown below, the load current attains the maximum value at ωt =

For a single phase, full bridge, diode rectifier excited from a 230 V, 50 Hz source. With R = 10 Ω & the inductance(L) large enough to maintain continues conduction, the average and rms values of diode currents will be

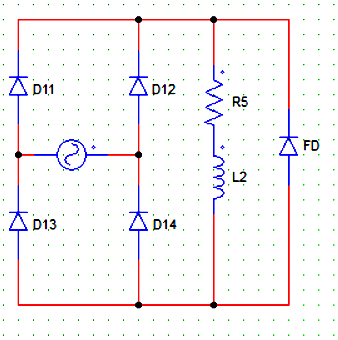

The circuit shown below, will have the output voltage waveform similar to that of a

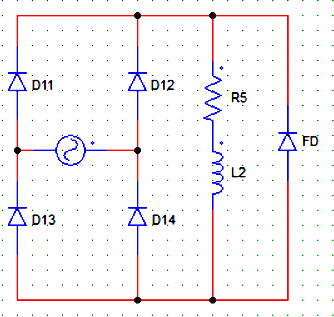

For the circuit shown below, D11 & D14 conduct from? Assume that anode of D12 is positive at ωt = 0 and likewise.

For a single phase, full bridge, diode rectifier excited from a 230 V, 50 Hz source. With R = 10 Ω & the inductance(L) large enough to maintain continuous conduction, the value of the supply power factor will be

For the circuit shown in the figure below,
Vs = 230 V
R = 10Ω
Find the average value of output current.

The PIV experienced by each of the diodes for the below shown rectifier configuration is

The rectification efficiency for B-2 type & M-2 type full wave diode rectifiers are ___ & ___ respectively.

A load of R = 60 Ω is fed from 1phase, 230 V, 50 Hz supply through a step-up transformer & than a diode. The transformer turns ratio = 2. The power delivered to the load is
