Single-Phase Half Wave AC-DC Converter Objective Questions – 4

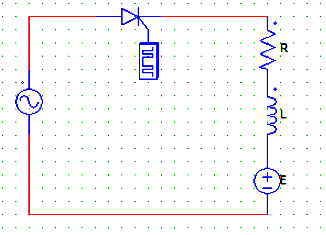

For the below shown circuit, a motor load (RLE) is connected to the SCR through supply Vs. The minimum value of the firing angle to turn on the SCR would be

A single-pulse transformer with secondary voltage of 230 V, 50 Hz, delivers power to bulb of R = 10 Ω through a half-wave controlled rectifier circuit. For α = 60° and output AC power of 2127 Watts, find the rectification efficiency

By using a freewheeling diode (FD) in a rectifier with RL load, the power consumed by the load

An SCR rectifier circuit is designed such that the average output voltage is 77.64 V & RMS value of output voltage is 145.873 V. Find the voltage ripple factor.

A single-pulse transformer with secondary voltage of 230 V, 50 Hz, delivers power to bulb of R = 10 Ω through a half-wave controlled rectifier circuit. For α = 60°, find the average current in the bulb

Find the PIV of the SCR

A 230V, 50Hz, single-pulse SCR is feeding a RL load with α = 40° and β = 210°. Find the value of average output voltage

A single-phase half-wave rectifier with a FD is supplied by Vs = 240 V, 50 Hz, AC source with a load R = 10 Ω, L = 0.8 mH. The firing angle is so adjusted such that the output voltage obtained is 100 V. Find the firing angle.

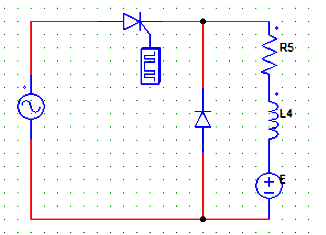

Choose the correct statement with respect to the below given circuit.

A 230 V, 50 Hz, one-pulse SCR controlled converter has extinction angle β = 210°. Find the circuit turn-off time
