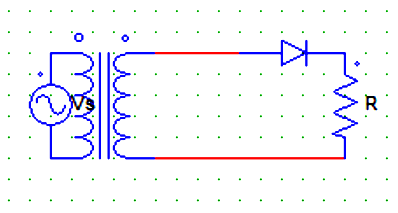

For the circuit shown below, The secondary transformer voltage Vs is given by the expression Vs = Vm sin ωt, Find the PIV of the diode.

In the process of diode based rectification, the alternating input voltage is converted into

For a single phase half wave rectifier, with R load, the diode is reversed biased from ωt =

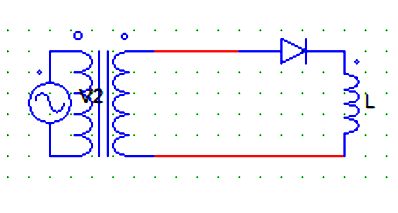

For the circuit shown below, The peak value of the load current occurs at ωt = ?

In a half-wave rectifier, the

Find the average value of output current for a 1-phase HW diode rectifier with R load, having RMS output current = 100A.

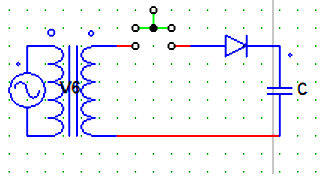

In the circuit shown below, The switch (shown in green) is closed at ωt = 0. The load current or capacitor current has the maximum value at ωt =

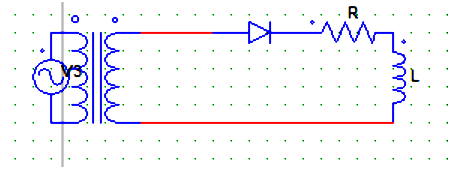

Find the rms value of the output voltage for the circuit shown below. Voltage across the secondary is given by Vm sinωt.

In a 1-Phase HW diode rectifier with R load, the average value of load current is given by Take Input (Vs) = Vm sinωt

For a certain diode based rectifier, the output voltage (average value) is given by the equation 1/2π [ ∫Vm sin ωt d(ωt) ] Where the integral runs from 0 to π The rectifier configuration must be that of a
