Types of Sensors used in Vibration Measurement

Last updated: July 27, 2019 1:14 pm
Editorial Staff
Vibration Measurement
7 Comments
Share
5 Min Read
SHARE

DIFFERENT SENSOR TYPES USED FOR VIBRATION MEASUREMENTS

Contents
1. VELOCITY SENSORSElectromagnetic linear velocity transducers :Electromagnetic tachometer generators :2. ACCELERATION SENSORSCapacitive accelerometers :Piezoelectric accelerometers :Potentiometric accelerometers :Reluctive accelerometers :Servo accelerometers :Strain Gage accelerators :3. PROXIMITY SENSORSEddy Current Sensor Probe :Capacitance Proximity Sensors :
  • Accelerometers (piezoelectric)
  • Velocity Sensor
  • Proximity Probes (capacitance or eddy current)
  • Laser displacement sensors

BRIEF EXPLANATION OF VIBRATION SENSOR PRINCIPLES:

1. VELOCITY SENSORS

Electromagnetic linear velocity transducers :

Typically used to measure oscillatory velocity. A permanent magnet moving back and forth within a coil winding induces an emf in the winding. This emf is proportional to the velocity of oscillation of the magnet. This permanent magnet may be attached to the vibrating object to measure its velocity.

Electromagnetic tachometer generators :

Used to measure the angular velocity of vibrating objects. They provide an output voltage/frequency that is proportional to the angular velocity. DC tachometers use a permanent magnet or magneto, while the AC tachometers operate as a variable coupling transformer, with the coupling coefficient proportional to the rotary speed.

2. ACCELERATION SENSORS

Capacitive accelerometers :

Used generally in those that have diaphragm supported seismic mass as a moving electrode and one/two fixed electrodes. The signal generated due to change in capacitance is post-processed using LC circuits etc., to output a measurable entity.

Piezoelectric accelerometers :

Acceleration acting on a seismic mass exerts a force on the piezoelectric crystals, which then produce a proportional electric charge. The piezoelectric crystals are usually preloaded so that either an increase or decrease in acceleration causes a change in the charge produced by them. But they are not reliable at very low frequencies.Vibration Measurement Sensors

Potentiometric accelerometers :

Relatively cheap and used where slowly varying acceleration is to be measured with a fair amount of accuracy.

In these, the displacement of a spring mass system is mechanically linked to a viper arm, which moves along a potentiometric resistive element. Various designs may have either viscous, magnetic or gas damping.

Reluctive accelerometers :

They compose accelerometers of the differential transformer type or the inductance bridge type. The AC outputs of these vary in phase as well as amplitude. They are converted into DC by means of a phase-sensitive demodulator.

Servo accelerometers :

These use the closed loop servo systems of force-balance, torque-balance or null-balance to provide close accuracy. Acceleration causes a seismic mass to move. The motion is detected by one of the motion-detection devices, which generate a signal that acts as an error signal in the servo-loop.

The demodulated and amplified signal is then passed through a passive damping network and then applied to the torquing coil located at the axis of rotation of the mass. The torque is proportional to the coil current, which is in turn proportional to the acceleration.

Strain Gage accelerators :

these can be made very small in size and mass. The displacement of the spring-mass system is converted into a change in resistance, due to strain, in four arms of a Wheatstone bridge. The signal is then post-processed to read the acceleration.

3. PROXIMITY SENSORS

Eddy Current Sensor Probe :

Eddy currents are formed when a moving (or changing) magnetic field intersects a conductor, or vice-versa. The relative motion causes a circulating flow of electrons, or currents, within the conductor. These circulating eddies of current create electromagnets with magnetic fields that oppose the effect of the applied magnetic field.

The stronger the applied magnetic field, or greater the electrical conductivity of the conductor, or greater the relative velocity of motion, the greater the currents developed and the greater the opposing field Eddy current probes sense this formation of secondary fields to find out the distance between the probe and the target material.

Capacitance Proximity Sensors :

Capacitive sensors use the electrical property of “capacitance” to make measurements. Capacitance is a property that exists between any two conductive surfaces within some reasonable proximity.

Changes in the distance between the surfaces change the capacitance. It is this change of capacitance that capacitive sensors use to indicate changes in position of a target. High-performance displacement sensors use small sensing surfaces and as result are positioned close to the targets .

Also Read: Instrumentation Related Videos

Don't Miss Our Updates
Be the first to get exclusive content straight to your email.
We promise not to spam you. You can unsubscribe at any time.
Invalid email address
You've successfully subscribed !

Continue Reading

Bently Nevada 3500 Machinery Protection Systems Hardware Modules
Bently Nevada Vibration Probes Functional Testing
What is Keyphasor ? How does Keyphasor works ?
How to do calibration checks of vibration Probe, extension cable and vibration monitor
How Vibration sensors Work ?
Basics of Vibration Measurement
Share This Article
Facebook Whatsapp Whatsapp LinkedIn Copy Link
Share
7 Comments
  • Shaju says:
    August 27, 2015 at 8:25 am

    Thanks for the information given on vibration measurements and sensors.

    Reply
  • Babu B Bamane says:
    March 5, 2016 at 12:36 am

    plz explain basic information about logics and function blok daigram of logics

    Reply
    • S Bharadwaj Reddy says:
      March 5, 2016 at 4:06 am

      Okay Sure.

      Reply
  • mallikarjun says:
    August 17, 2016 at 12:57 pm

    Thanks for giving such a good information about field instuments

    Reply
  • Asamenew says:
    February 4, 2017 at 8:53 pm

    Dear all
    I want your advice me how to choose vibration sensor for sensing wether the target is hited by bulet or not
    Thank you

    Reply
  • Jesse Ford says:
    December 31, 2019 at 3:11 am

    Thanks for mentioning that strain gage accelerators can be both very small in size and mass. My brother is thinking about telling the city and county director to put bridge monitoring sensors on an old overpass because it’s very old and a strong enough earth could possibly destroy it. It seems like a good investment for the city to hire a reputable company that has dependable technology that can detect movement in the earth before anything detrimental happens.

    Reply
  • Joseph says:
    August 30, 2023 at 1:26 am

    Please explain how to test the distance sensor and the output voltage value. Thank you

    Reply

Leave a Reply Cancel reply

Your email address will not be published. Required fields are marked *

Stay Connected

128.3kFollowersLike
69.1kFollowersFollow
210kSubscribersSubscribe
38kFollowersFollow

Categories

Explore More

Why we use Negative Voltage in Vibration Measurement ?
AND Logic in Bently Nevada Vibration System
Mechanical Vibration Switch Principle
Seismic Transducers Objective Questions
Advantages & Disadvantages of Different Vibration Sensors
Different Types of Turbine Protective Devices
Interview Questions on Vibration Measurement
Importance of Vibration Measurement

Keep Learning

Proximity Transducer Operation

Proximity Transducer System Operation

Vibration Monitoring System Troubleshooting

Vibration Monitoring System Step by Step Troubleshooting Guide

Vibration Analysis

Top 100 Vibration Analysis Questions and Answers

Vibration Sensor

Vibration Probes Questions and Answers

Turbine Supervisory Instrumentation

What is Turbine Supervisory Instrumentation (TSI)?

Gap Voltage of Bently Nevada Vibration Probe

Gap Voltage of Bently Nevada Vibration Probe

Vibration Probe Field Setting Procedure

Vibration Probe Field Setting Procedure

Eddy current Vibration Sensor Principle

Non-contact Vibration Measurement

Learn More

Mathematical Models of Physical Systems

Differential Equations of Physical Systems & Dynamics of Robotic Mechanisms

Electronics and Communication Engineering Projects

175 Electronics and Communication Engineering Projects

Types of Scan Time in a PLC

Programmable Logic Controller (PLC) Scan Time – Types, Theory

Structured Text Selector Machine Logic

Write a PLC Program for Selector Machine using Structured Text

Allen-Bradley MicroLogix controller

Programmable Logic Controller (PLC) Questions and Answers – 15

Industrial Process Plant Project Execution Cycle

Detail Design Engineering Competency Aspects

High-pressure Service Level Transmitters Misunderstood Zero Drifts

High-pressure Service Level Transmitters Misunderstood Zero Drifts

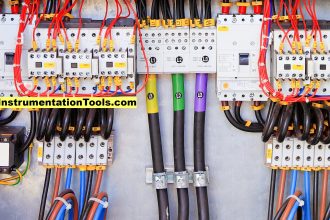

How to Identify Phase, Earth, and Neutral Wires_
