Formula for Linear mA to Square root mA conversion

Last updated: August 21, 2021 5:20 pm
Editorial Staff
Formulas
10 Comments
Share
1 Min Read
SHARE

This formula used to convert transmitter Linear ma to Square root ma conversion.Calculating the equivalent Square root ma for any given Linear ma.

Contents
Formula for Linear ma to Square root ma conversionSquare root mA = { √ [(X-4)/16] } .16 + 4Convert 12 mA linear to square root mA

Formula for Linear ma to Square root ma conversion

Formula for Linear mA to Square root mA conversion

Formula:

Square root mA = { √ [(X-4)/16] } .16 + 4

Where

X is Linear ma Value

Example:

Convert 12 mA linear to square root mA

Square root mA = { √ [(X-4)/16 ] } .16 + 4

Enter 12 in place of ‘X’

Square root mA = { [ Sqrt (12-4)/16 ] x 16 } + 4

Square root mA = { [ Sqrt (8)/16 ] x 16 } + 4

Square root mA = { [ Sqrt 0.5 ] x 16 } + 4

Square root mA = { 0.707 x 16 } + 4

Square root mA = 11.313 + 4

Square root mA = 15.313 mA

Read Next:

  • 4–20 mA Process Control Loops
  • DP Transmitter Error Calculations
  • Facts About Orifice Flow Meters
  • Basics of Loop Checks
  • Instrument Calibration Questions
Don't Miss Our Updates
Be the first to get exclusive content straight to your email.
We promise not to spam you. You can unsubscribe at any time.
Invalid email address
You've successfully subscribed !

Continue Reading

Scaling Sensor Output to Engineering Units
Control Valve Cv calculation
DP Transmitter Dry Leg & Wet Leg Calculations
Formula for Linear % to Square root % conversion
Formula for Process Variable to Percentage Conversion
Instrumentation Basics – Range Conversion Formula and Examples
Share This Article
Facebook Whatsapp Whatsapp LinkedIn Copy Link
Share
10 Comments
  • Yunus Khan says:
    May 29, 2015 at 3:02 pm

    You solved my problem. Finally got the answer to my question, Linear ma to Square root ma conversion.

    Reply
  • Tauhid Ashraf says:
    April 3, 2016 at 3:51 pm

    Dear Sir

    (First of all I am sorry if I am wrong)

    with due respect I would like to draw your attention on the formula
    ” Formula for Linear ma to Square Root ma Conversion”
    what you have written is
    Square root ma = square root of ((X-4)/16) x 16)+4

    from my point of view it should be square root of ((X-4) x 16)+4

    once again I am sorry if I am wrong …. but please correct me.

    Reply
    • S Bharadwaj Reddy says:
      April 4, 2016 at 7:21 am

      Hello Ashraf, Linear 8mA = Square root 12 mA, Just Calculate the equivalent square root mA for the linear 8mA using the above two formulas and crosscheck the results. Also Click Here for Linear to Square root Conversion Chart.

      Reply
      • Tauhid Ashraf says:
        April 4, 2016 at 7:57 am

        Hello Sir,

        for Linear 8 ma, If I use the first formula mentioned above
        Square Root ma = square root of ((X-4)/16) x 16)+4
        =Square root of ((8-4)/16)x 16)+4
        =Square root of ((4/16)x 16)+4
        =Square root of ((1/4)x 16)+4
        =Square root of 4 + 4
        =2 + 4
        =6

        For Linear 8 ma, if I use the second formula
        Square root ma = Square root of ((X-4)x 16) +4
        =Square root of ((8-4)x 16)+4
        =Square root of ((4)x 16)+4
        =Square root of (64) +4
        =8+4
        =12

        For your kind information, I already checked the second formula with all the Linear Value from 4 – 20 ma.

        In the first formula if i am doing anything wrong, Please let me know.
        Thank you so much for your prompt response.

        Reply
        • S Bharadwaj Reddy says:
          April 4, 2016 at 9:37 am

          Hello Ashraf,
          for Linear 8 ma, If I use the first formula mentioned above
          Square Root ma = [[square root of ((X-4)/16)] x 16]+4
          = [[Square root of ((8-4)/16)] x 16]+4
          =[[Square root of (0.25)] x 16]+4
          = [ 0.5 x 16 ] + 4
          = 8 + 4
          = 12

          Seems brackets are needed, so little bit confusing. Thanks.

          Also you can use online tools. click here

          Reply
          • Narendrasinh says:
            February 23, 2018 at 4:39 am

            Please explain counting for leaner 12 ma

  • Tauhid Ashraf says:
    April 4, 2016 at 10:11 am

    Hello Sir,

    After putting the bracket, there is no confusion.

    Thank you very much.

    Reply
  • Ronnie Robiño says:
    August 21, 2021 at 9:20 am

    Sir,
    Hello sir sorry I cannot get the exact answer (15.3137)

    Here’s what i do:
    12-4√8÷16+4= 15.2928
    Kindly share how you get the 15.31

    Thanks
    Ronnie Robiño

    Reply
    • S Bharadwaj Reddy says:
      August 21, 2021 at 5:15 pm

      Linear 12mA to Sqrt mA?

      { [ Sqrt (12-4)/16 ] x 16 } + 4

      { [ Sqrt 0.5 ] x 16 } + 4

      { 0.707 x 16 } + 4

      11.313 + 4

      15.313

      Reply
  • Benzeghioua Ilyas says:
    March 22, 2024 at 4:31 am

    Thanks for all

    Reply

Leave a Reply Cancel reply

Your email address will not be published. Required fields are marked *

Stay Connected

128.3kFollowersLike
69.1kFollowersFollow
210kSubscribersSubscribe
38kFollowersFollow

Categories

Explore More

Formulas to calculate mA from PV, LRV and URV
Formula for Percentage to Process Variable Conversion
Calculate Process Variable from Transmitter Current
Example of 3-15 psi to 4-20mA Conversion
Linear to Square Root Extraction
Calculate Flow Coefficient Kv of Solenoid Valve
Displacer Level Measurement Calculations
Calculate Process Variable from 4-20mA using Fraction of Measurement

Keep Learning

4-20mA Image

4-20mA Graphical Calculations

Convert Raw Counts to Engineering Units

Raw Counts to Engineering Units : Conversion Formula

Field Instrument 4-20mA Calculation

How to do 4-20mA Conversions Easily

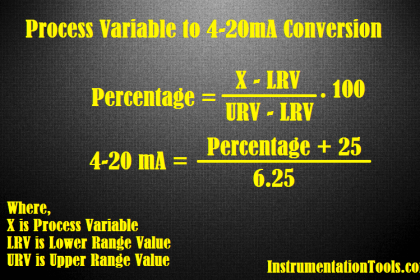

Process variable to 4-20mA Conversion

Formula to Calculate 4-20 mA from Process Variable

Capillary Remote Seal Leave Measurement

Siemens Pressure Transmitter with Remote Seals Calculations

Percentage-to-Current-Conversion

Formula to Calculate 4-20ma from Percentage

4-20ma-formulas-and-examples

4-20mA Formulas and Examples

Closed Tank Remote Seal Level Transmitter calculation

Remote Seal Transmitters Ranging Calculation

Learn More

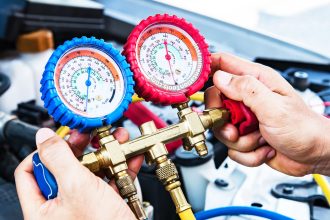

Types of Pressure Measuring Scales

Types of Pressure Measuring Scales

Analog Electronics Objective Questions

Analog Electronics Objective Questions – Set 1

Wireless Electric Vehicle Charging

Wireless Electric Vehicle Charging

Difference between LVDT and RVDT

Difference between LVDT and RVDT?

What is Transparent Solar Panel

What is Transparent Solar Panel? – Working Principle and Theory

Advantages & Disadvantages of Air Insulated Substation

Advantages & Disadvantages of Air Insulated Substation

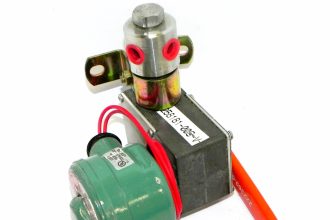

On-Off Valve Problems
