What is Instrumentation Control System ?

Last updated: February 28, 2019 11:16 am
Editorial Staff
Control Systems
No Comments
Share
3 Min Read
SHARE

An instrumentation control system is an electrical, electronic, or programmable electronic system (E/E/PES) which may perform some or all of the following functions:

  • Monitoring, recording and logging of plant status and process parameters;
  • Provision of operator information regarding the plant status and process parameters;
  • Provision of operator controls to affect changes to the plant status;
  • Automatic process control and batch/sequence control during start-up, normal operation, shutdown, and disturbance. i.e. control within normal operating limits;
  • Detection of onset of hazard and automatic hazard termination (i.e. control within safe operating limits), or mitigation;
  • Prevention of automatic or manual control actions which might initiate a hazard.

Instrumentation Control System

Instrumentation Control Systems

These functions are normally provided by, alarm, protection (trip, interlocks and emergency shutdown), and process control systems.

These engineered systems are individually and collectively described as control systems, and may be independent, or share elements such as the human interface, plant interface, logic, utilities, environment and management systems.

The human interface may comprise a number of input and output components, such as controls, keyboard, mouse, indicators, annunciators, graphic terminals, mimics, audible alarms, and charts.

The plant interface comprises inputs (sensors), outputs (actuators), and communications (wiring, fibre optic, analogue/digital signals, pneumatics, fieldbus, signal conditioning, barriers, and trip amplifiers).

The logic elements may be distributed, and linked by communications, or marshalled together and may be in the form of relays, discrete controllers or logic (electronic, programmable or pneumatic), distributed control systems (DCS), supervisory control and data acquisition (SCADA), computers (including PCs), or programmable logic controllers (PLC). The logic elements may perform continuous control functions, or batch or change of state (e.g. start-up/shut-down) sequences. It should also be noted that logic functions may be distributed to be undertaken within smart sensors or actuators.

Utilities are the power supplies and physical elements required for the systems, such as electricity and instrument air.

Environment is the physical accommodation and surroundings in which the control systems (including the operator) are required to work, including physical accommodation or routings, environmental conditions (humidity, temperature, flammable atmospheres), and external influences such as electromagnetic radiation and hazards which might affect the operation of the control system during normal or abnormal conditions such as fire, explosion, chemical attack etc.

Modern instrumented control systems are generally electrical, electronic or programmable electronic systems (E/E/PES), but some purely pneumatic systems may still be in operation.

Note :  Contains public sector information licensed under Open Government Licence v3.0.

Articles You May Like :

What is Emergency Shutdown System (ESD) ?

Stop Cyber Attacks on Control Systems ?

Types of Control Systems

4-wire Passive versus Active Transmitters

Practical Process Control System Questions

Don't Miss Our Updates
Be the first to get exclusive content straight to your email.
We promise not to spam you. You can unsubscribe at any time.
Invalid email address
You've successfully subscribed !

Continue Reading

Energize to Safe Loop philosophy
What is Nest Loading? – DCS and PLC Control Systems
Derivative Controller Principle
Instrumentation and Electrical Teams Interactions (Detail Design Engineering)
Feedforward Vs Feedback Control

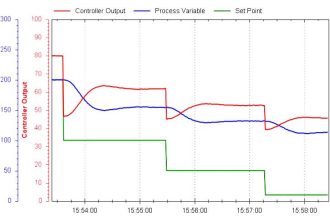

PID Controller Loop Tuning Questions and Answers – Part 2
