Remote Diaphragm Seal Transmitter for Vacuum Application

Last updated: October 11, 2019 9:46 am
Editorial Staff
Pressure Measurement
No Comments
Share
4 Min Read
SHARE

First I will list the proof/recommendation I found in vendor literature and also during one of the projects this was vendor recommendation for full vacuum condition.

Contents
Remote Diaphragm Seal Transmitter# REASON 1 (BOILING POINT DECREASES WITH DECREASE IN PRESSURE)# Reason 2 (TO MAINTAIN POSITIVE PRESSURE AT TRANSMITTER SIDE)# Reason 3 (BUBBLES TEND TO EXPAND SIGNIFICANTLY AS ZERO IS REACHED)

As always it isn’t good to accept anything without reason and logic so I have compiled possible reasons I could find for such installations/recommendations.

In FULL Vacuum Condition, MOUNT THE REMOTE DIAPHGRAM SEAL TRANSMITTER BELOW LOWER TAPPING.

Remote Diaphragm Seal Transmitter

Remote Diaphragm Seal Transmitter for Vacuum Application

1) Let’s start with BADOTHERM recommendation

Refer below the catalog front page and the snap of diaphragm seal installation

diaphragm seal for vacuum

Reference: badotherm

2) Next EMERSON recommendation

Emerson Vendor recommendations /literature

Here’s the link for reference (refer below sanp from below link that states for vacuum application the diaphragm seal must be below lower tapping point.



diaphragm seal transmitter mounting

Reference: Emerson

NOW THE BEST PART WHY SO?

When it comes for reason for doing so they are related but slightly different so I have list all reason I could possibly find.

# REASON 1 (BOILING POINT DECREASES WITH DECREASE IN PRESSURE)

For example, water boils at 100°C at atmospheric pressure (101,325 kPa); at absolute vacuum, it boils at 0°C. This combined effect of pressure and temperature exists for all fluids and is as such a predominant factor for the selection of the Diaphragm Seal fill fluid.

Similarly,

The hard vacuum also caused the seal fluid in the level transmitters to boil (remember that boiling point is dependent upon pressure—with a decrease in pressure, the boiling point also decreases) and creates bubbles in the capillary.

# Reason 2 (TO MAINTAIN POSITIVE PRESSURE AT TRANSMITTER SIDE)

diaphragm seal installation

Take this example for DP level transmitter if our lower nozzle is at the bottom of the tank but our transmitter is 50 inches below. So at zero level when no pressure is experienced at the lower nozzle still the transmitter has to be calibrated for it (zero suppression). Similarly when Full vacuum is created the would still be some positive pressure acting on the transmitter

Refer vendor explanation above

# Reason 3 (BUBBLES TEND TO EXPAND SIGNIFICANTLY AS ZERO IS REACHED)

(I am personally not completely convinced by this reason but regardless I have listed it )

This is due to the fact that most fill fluids contain microscopic amounts of air or trapped gases, which tend to expand significantly as a pressure of absolute zero is approached.

So what it concluded from this explanation is as the positive head is maintained it opposes the expansion of these bubbles.

PS: This is as per best of my understanding I still have a long way to go but this is an attempt to share along the way what I am learning.

If anyone is clear about this concept please comment and correct or message personally if this needs correction I would be very grateful!

Credits:- Mick Vermeer who first introduced me to this concept !!!

Hope this helps !!!

Author: Asad Shaikh

Profile: Linkedin

Read Also:

  • Static Pressure Limit in DP Transmitter
  • Pressure Measurement using Manometer
  • Differential Pressure Transmitter Errors
  • Compare Absolute and Gauge Pressure
  • Transmitter Heat-traced impulse lines
Don't Miss Our Updates
Be the first to get exclusive content straight to your email.
We promise not to spam you. You can unsubscribe at any time.
Invalid email address
You've successfully subscribed !

Continue Reading

Temperature Compensation for Pressure Measurement
Types of Load Cells
Sample Raw DataSheet for Pressure Calibration
Pressure Gauges with Capsule Sensor Principle

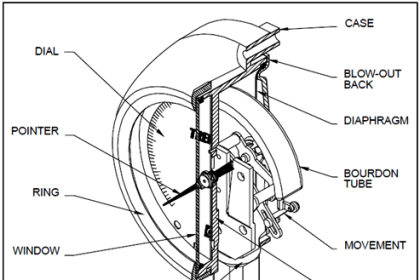

Types of Bourdon Tube
McLeod Gauge Working Principle
Share This Article
Facebook Whatsapp Whatsapp LinkedIn Copy Link
Share
Leave a Comment

Leave a Reply Cancel reply

Your email address will not be published. Required fields are marked *

Stay Connected

128.3kFollowersLike
69.1kFollowersFollow
208kSubscribersSubscribe
38kFollowersFollow

Categories

Explore More

Effects of Symmetric and Asymmetric Capillary Tube Pressure Measurement
Types of Pressure Measuring Scales
Diaphragm Seal Material Selection
Pressure Transmitter Circuit
Types of Pressure – Instrument Questions and Answers
Strain Gauge Pressure Sensor Principle
Impulse Line – Purpose & Tapping Point Location
What is a Submersible Pressure Transmitter? Principle, Advantages

Keep Learning

Barometer Principle

What is a Barometer?

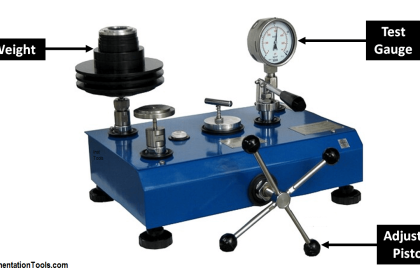

The Principle of Dead Weight Pressure Tester

The Principle of Dead Weight Pressure Tester

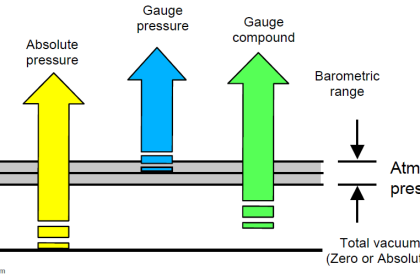

Types of Pressure

Basics of Pressure Measurement

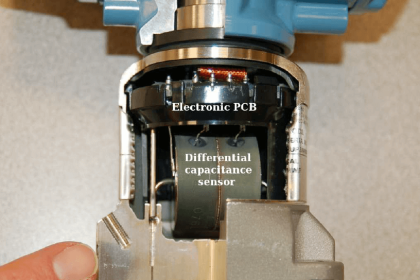

Pressure Transmitter Parts

Differential Pressure Transmitter Working Principle

Comparison of Pressure Instruments - Industrial Instrumentation

Comparison of Pressure Instruments – Industrial Instrumentation

Strain Gauge Pressure Transducer

Resistance Type Pressure Transducers Principle

Pressure Measurement Interview Questions

Interview Questions on Pressure Measurement

What are Pressure Sensing Lines

What are Pressure Sensing Lines? – Causes of Errors in Measurement

Learn More

DCS ESD Logic Overview Graphic Display

Automation System Process Functionalities

Difference between Router, Switch, and Hub

Difference between Router, Switch, and Hub

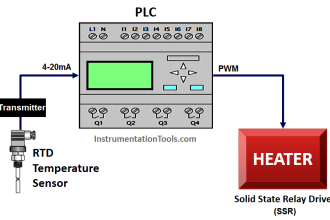

PLC Temperature Control using Pulse Width Modulation

PLC Temperature Control using Pulse Width Modulation (PWM)

Gas Detection Excel Converters

Instrumentation Guide

Control and Instrumentation Engineer Study Guide

BACNet Protocol

What is the BACNet Protocol? BACNet IP vs. BACNet MS/TP

Magnetostrictive Transducers Objective Questions

Magnetostrictive Transducers Objective Questions

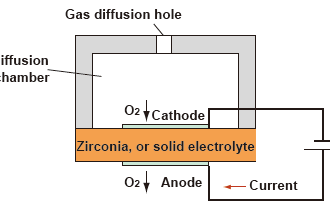

Oxygen Analyzer Principle
