Diode Circuits Questions and Answers – Part 3

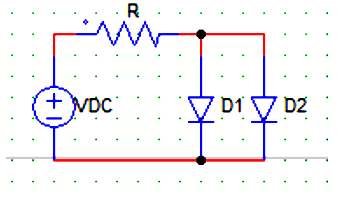

For the circuit shown below,
Vdc = 50 V
Cut-in voltage for D1 = 0.2 V
Cut-in voltage for D2 = 0.6 V
R = 5KΩ
Current through D1 & D2 would be,

When diode is connected in series to an AC source & RL load, the conduction time for the diode

For the circuit shown in the figure below, consider the diode as an ideal diode & rms value of source voltage as Vs. The output voltage waveform at R will have

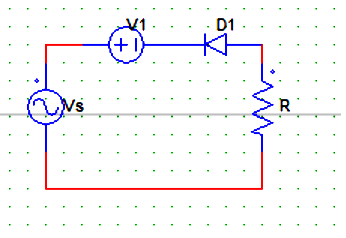

For the circuit shown in the figure below, Vs is the ac voltage source with peak value Vm. The waveform of the load voltage at the resistor will have

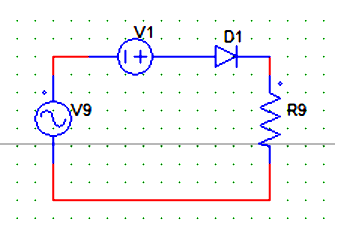

For the circuit shown in the figure below, V9 is the AC voltage source with peak value Vm. The waveform of the load voltage at the resistor has a

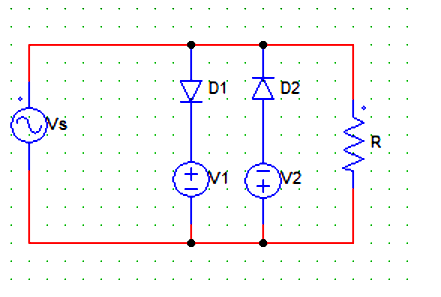

The circuit shown below has the following parameters:
Voltage drop across D1 & D2 = 0.7 Volts
V1 = 8 Volts
V2 = 6 Volts
Vs = 10V/√2 (RMS)
At the load (R), the peak value in the negative half cycle is

For the circuit shown below, Vs=230V, Voltage drop across the diode (Vd) = 2V
The peak value of voltage at R in the positive and the negative half cycles are ___ & ___ respectively.

When a diode is connected in series with an AC source & R load, the conduction time per cycle is

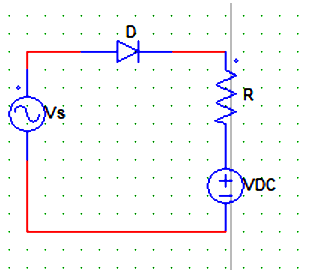

Consider the diode to be an ideal one and Vo = Vr + Vdc during positive half cycle. Thus, during the negative half cycle

The circuit shown below has the following parameters:
V1 = 8 Volts
V2 = 6 Volts
Vs = 10V/√2 (rms)
Voltage drop across D1 & D2 = 0.7 Volts
At the load (R), the peak value in the positive half cycle will be
