In case of a single-phase half-wave circuit with RL load, with firing angle α and extinction angle β, the conduction angle γ can be written as

In case of a single-phase half-wave circuit with RL load, with firing angle α and extinction angle β, the thyristor is reversed biased from

For a single phase half-wave thyristor circuit with R load, the power delivered to the resistive load is

For a single phase half-wave thyristor circuit with R load, the input power factor is given by

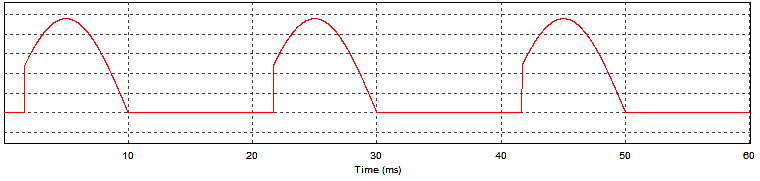

For a certain SCR configuration, the below shown waveform is obtained. Find the value of the average output voltage with α = 30° & Vs = 240 V.

For the below shown circuit, The SCR is gated at α. At ωt = π

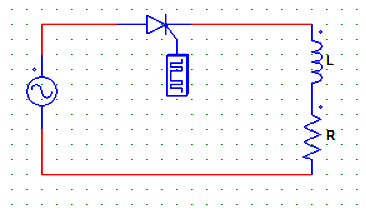

For the below shown circuit, The load voltage waveform from ωt = π to ωt = π+α = β (extinction angle) is

A single phase 230 V, 1 kW heater is connected across a 1-phase 230 V, 50 Hz supply through an SCR. The firing angle of the SCR is adjusted to give a rms voltage of 155 V. Find the power absorbed by the heater element.

For a half-wave single phase thyristor rectifier circuit with any type of load the _______ + _________ waves must ideally give the supply voltage waveform.

A single-phase half wave circuit has Vs = 230 V with a R load of 100 Ω. Find the average load current at α = 30°.
