SCR Commutation Techniques Objective Questions
Power Electronics Objective Questions & Answers
0%

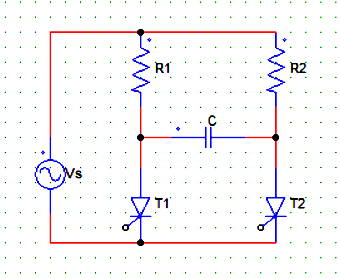

For the circuit shown in the figure below, R1 = 50 Ω, R2 = 100 Ω, Vs = 100 V. At the time of turn-on of the SCR, initial thyristor current is
Correct!
Wrong!
-
Class E commutation is a/an
Correct!
Wrong!
-
For the circuit shown in the figure below,
C = 4 pF
L = 16 μH
Vs = 200V
The capacitor voltage after the SCR is self commutated is
C = 4 pF
L = 16 μH
Vs = 200V
The capacitor voltage after the SCR is self commutated is
Correct!
Wrong!
-
___________ commutation is usually used in phase-controlled rectifiers
Correct!
Wrong!
-
Parallel-capacitor commutation is
Correct!
Wrong!
-
Natural commutation of an SCR takes place when
Correct!
Wrong!
-
For the circuit shown below, The maximum value of current through thyristors T1 & TA can be given by
Correct!
Wrong!
-

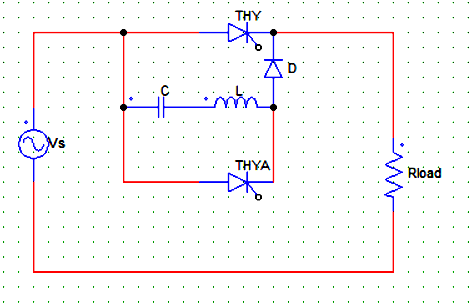

For the circuit shown in the figure below,
C = 4 pF
L = 16 μH
Vs = 200 V
The peak thyristor current is
C = 4 pF
L = 16 μH
Vs = 200 V
The peak thyristor current is
Correct!
Wrong!
-
For the circuit shown in the figure below, ___ type of commutation would take place for the SCR (THY1)
Correct!
Wrong!
-

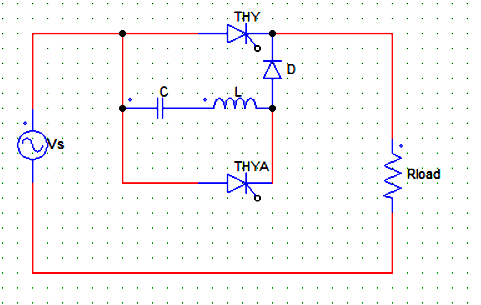

Below is the circuit of a resonant-pulse commutation, the maximum voltage to which the capacitor C charges is
Correct!
Wrong!
-
SCR Commutation Techniques-2
I got %%score%% of %%total%% right
