How to Add Unspecified CPU in Tia Portal?

Last updated: March 4, 2021 12:03 pm
Editorial Staff
PLC Tutorials
No Comments
Share
2 Min Read
SHARE

This article is about to add an unspecified CPU in Siemens TIA portal.

Unspecified CPU in Tia Portal

During software setup, you get to know that CPU which installed in hardware doesn’t contain a part number and you also don’t have anything else related to its which can give us a part number.

In such a case, siemens provide an option to detect unspecified CPU. Do follow the below steps to know the process of adding such CPU.

 Step 1:

Open TIA PORTAL. Create a new project or open an existing one.

Step 2:

Do follow the steps as shown in the below window.

In Simatic option, you Can expand any option to add CPU which you want to add.

Unspecified CPU in Tia Portal

Step 3:

Here. I will add the CPU using the Simatic-1500 option.

Expand CPU and choose unspecified CPU as shown in the below window.

Click “Add” to proceed.

Simatic-1500 CPU

Step 4:

The following window will open up. You can see unspecified CPU is added.

Adding unspecified CPU

Step 5:

Click on “Detect” as shown in the below window.

Siemens S7 CPU

Step 6:

The following window will open.

Hardware Detection for PLC

Step 7:

As you can see in the below window when I drop down the list it won’t contain a simulator option.

But simply you have to choose the method of communication you are using and hit the “start search” button. Where you can find a CPU and click on “detect” to add CPU.

As I don’t have actual PLC, I can’t show you detect procedure but you can find it by following the last step (online).

Assign CPU in Siemens PLC

Author: Suhel Patel

If you liked this article, then please subscribe to our YouTube Channel for PLC and SCADA video tutorials.

You can also follow us on Facebook and Twitter to receive daily updates.

Read Next:

  • Script in Intouch Scada
  • Pulse Generation Timer
  • Why we use RTO?
  • FIFO Instruction in PLC
  • Create Project in Intouch
Don't Miss Our Updates
Be the first to get exclusive content straight to your email.
We promise not to spam you. You can unsubscribe at any time.
Invalid email address
You've successfully subscribed !

Continue Reading

Simulation of Studio 5000 and FactoryTalk View Studio
Design a Water Pump PLC Program using CX-Programmer
Motor ON OFF Logic in PLC
Difference Between PLCSIM and PLCSIM Advanced? – Siemens PLC
Things to Take Care of When Designing SCADA System
What is Rewire Tool in Simatic Manager?
Share This Article
Facebook Whatsapp Whatsapp LinkedIn Copy Link
Share
Leave a Comment

Leave a Reply Cancel reply

Your email address will not be published. Required fields are marked *

Stay Connected

128.3kFollowersLike
69.1kFollowersFollow
208kSubscribersSubscribe
38kFollowersFollow

Categories

Explore More

Example of Controlling the PLC Output using Push Buttons
What is Function Module in Siemens PLC?
Extended Timer Logic in PLC
What are Functions in PLC Programming? (FCs)
PLC Ladder Logic Simulator Mobile Apps For Android
PLC FBD Program for Bottle’s Capping with Rotating Mechanism
STL Programming – SET, RESET, ASSIGN
PLC based Automatic Bell System for a School

Keep Learning

PLC Based Metro Automation Project

PLC based Metro Automation Project

Does Really a Safety Barrier is Important

Does Really a Safety Barrier is Important? – PLC DCS Systems

PLC Question Bank

PLC Question Bank

PLC Program for Boolean Expression

PLC Program for Boolean Expression

Omron CX programmer shift register

The Concept of Shift Register in Omron PLC with Example

Free Industrial Control System (ICS) Cyber Security Training Course

Free Industrial Control System (ICS) Cyber Security Training Course

What is Siemens TDC - Siemens Control System

What is Siemens TDC? – Siemens Control System

Schneider PLC Programming Example

Schneider PLC Programming Example for Beginners

Learn More

Pressure Control Valve

What is Pressure Control Valve?

CODESYS HMI Interface

CODESYS HMI Interface

Analog Input Card Resolution Effects on Accuracy

PLC Analog Input Card Resolution Effects on Accuracy

Classification of Transmission Lines

Classification of Transmission Lines

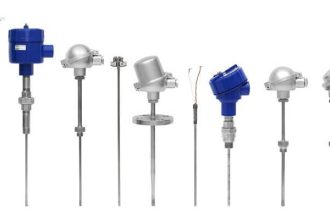

Thermocouples
