Single-Phase Full Wave AC-DC Converter Objective Questions – 3

Choose the correct statement

Find the expression of the rms value of output voltage for a single-phase M-2 type rectifier with RL load and continues load current. Transformer ratio is 1:1 with supply voltage Vs = Vm sinωt

In inverter operation, with output voltage = Vo and a RLE load connected

The below shown rectifier configuration has continues load current, find the expression of the RMS value of output voltage when the supply Vs = Vm sinωt

A motor load is connected to a single-phase full converter B-2 type controlled rectifier. The net energy is transferred from ac source to the motor (dc load) when

In converter operation, with output voltage = Vo and RLE load.

A motor load is connected to a single-phase full converter B-2 type controlled rectifier, the net energy is transferred from ac source to the motor (dc load) when

A single-phase full controlled converted with RLE load will act like a line-commutated inverter when the firing angle α

An SCR has the peak forward voltage = 1000 V. Find the maximum voltage that the SCR can handle if employed in a M-2 type full controlled converter circuit. Use factor of safety (FOS) = 2.5

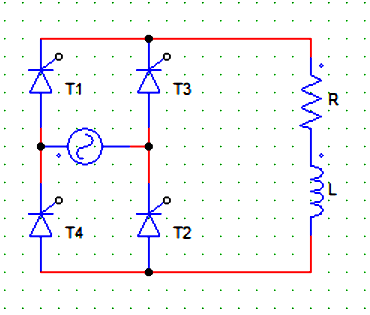

The below shown rectifier configuration has continues load current, find the expression for the average value of output voltage when the supply Vs = Vm sinωt is connected.
