SinglePhase Full Wave ACDC Converter Objective Questions
Power Electronics Objective Questions & Answers
0%
A single phase full controlled bridge converter is connected to load having R = 0.4 Ω, E = 120, L = 0.2 mH, Vs = 230V. The RMS value of load current is 10 A for a firing angle of 53.21°. Find the input power factor.
Correct!
Wrong!

A singlephase full converter bridge, is connected to a RLE load. The source has a rms voltage of 230 V and the average load current is 10 A. Find the firing angle for which the power flows from AC source to the DC load. Consider E = 120 V, R = 0.4 Ω.
Correct!
Wrong!

An SCR has the peak forward voltage = 1000 V. Find the maximum voltage that the SCR can handle if employed in a B2 type full controlled converter circuit. Use factor of safety (FOS) = 2.5
Correct!
Wrong!

A singlephase two pulse converter feeds RL load with a sufficient smoothing such that the load current does not fall to zero. If the resistance of the load circuit is increased then the
Correct!
Wrong!

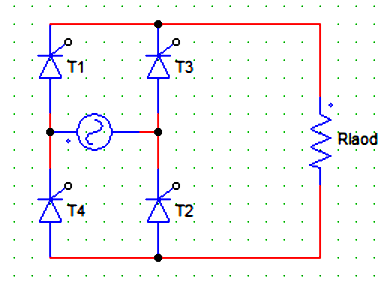

For the below shown converter configuration, find the expression for the average value of voltage across the resister R with Vs = Vm sinωt and firing angle = α.
Correct!
Wrong!

In case of controlled rectifiers, the nature of the load current (continues or discontinuous) depends upon the
Correct!
Wrong!

A single phase full converter feeds power to a RLE load with R = 6 Ω and E = 60 V. Find the average value of the load current when the supply voltage is 230 V rms AC and a firing angle = 50°.
Correct!
Wrong!

A single phase full wave midpoint SCR converter, uses a 230/200 V transformer with the centre tap on the secondary side. The P.I.V. per SCR is
Correct!
Wrong!

In a single phase full converter, for discontinuous load current and extinction angle β > π, each SCR conducts for
Correct!
Wrong!

A singlephase full converter bridge, is connected to a RLE load. The source has a rms voltage of 230 V and the average load current is 10 A. Find the firing angle for which the power flows from the DC load to the AC source. Consider E = 120 V, R = 0.4 Ω, L = 2 Henry.
Correct!
Wrong!
