Practical Process Control System Questions & Answers – 12

Last updated: September 6, 2018 4:30 pm
Editorial Staff
Practical Questions
No Comments
Share
2 Min Read
SHARE

In this process, two chemical streams are mixed together in a reactor vessel. The ensuing chemical reaction is exothermic (heat-producing) and must be cooled by a water cooling system to prevent overheating of the vessel and piping. A temperature transmitter (TT) senses the reaction product temperature and sends a 4-20 mA signal to a temperature indicating controller (TIC). The controller then sends a 4-20 mA control signal to the temperature valve (TV) to throttle cooling water flow:

two chemical streams are mixed together

Suppose something fails in the control valve mechanism to make it incapable of opening further than 80%. From 0% to 80% position, however, the valve responds normally.

Describe in detail the effect this fault will have on the performance of the cooling system.

Answer :

There will be no effect on the performance of this cooling system, except in circumstances where the controller tries to open the valve further than 80%. In those cases, the process temperature will exceed setpoint.

Share Your Answers via Comments

More Questions & Answers :
Practical Process Control System Questions & Answers – 11
Practical Process Control System Questions & Answers – 12
Practical Process Control System Questions & Answers – 13
Practical Process Control System Questions & Answers – 14
Practical Process Control System Questions & Answers – 15
Practical Process Control System Questions & Answers – 16
Practical Process Control System Questions & Answers – 17
Practical Process Control System Questions & Answers – 18
Practical Process Control System Questions & Answers – 19
Practical Process Control System Questions & Answers – 20
Don't Miss Our Updates
Be the first to get exclusive content straight to your email.
We promise not to spam you. You can unsubscribe at any time.
Invalid email address
You've successfully subscribed !

Continue Reading

PLC Permissive for Motor Control
Calculate the appropriate millivoltage values of a Thermocouple
Type E thermocouple Calculations
Moving Pressure Sensing Level Transmitter from Top to Bottom
Paint Mixing System
Practical Process Control System Questions & Answers – 8
Share This Article
Facebook Whatsapp Whatsapp LinkedIn Copy Link
Share
Leave a Comment

Leave a Reply Cancel reply

Your email address will not be published. Required fields are marked *

Stay Connected

128.3kFollowersLike
69.1kFollowersFollow
210kSubscribersSubscribe
38kFollowersFollow

Categories

Explore More

Overhead Product Pressure Control Loop
What Effect on Hydrostatic Level Transmitter if Liquid Density Changes?
Find Thermocouple Ouput Voltage
Practical Process Control System Questions & Answers – 7
Programmable Logic Controller (PLC) Questions and Answers – 13
Questions on Dip Tube Type Level System
Identify Solenoid Valves Energized or de-energized?
Purge Type Level Transmitter Questions

Keep Learning

DP transmitter Errors

DP Transmitter Calibration Errors

Programmable Logic Controller (PLC) Questions and Answers

Programmable Logic Controller (PLC) Questions and Answers – 6

Limit Switches Wiring

Draw Limit Switch Symbol ?

Calculate Temperature of Three Wire RTD

Determine the Temperature of 3 Wire RTD

PLC Motor Control Circuit

Motor Trip Logic using PLC Programming

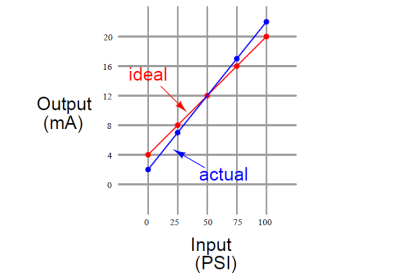

A span error with wrong slope

Determine the Instrument Calibration Error

Tank uses 3 Pressure Transmitters to Measure Level & Density

Tank uses 3 Pressure Transmitters to Measure Level & Density

Determine Level of Liquid in the Vessel and its Specific Gravity

Determine Level of Liquid in the Vessel and its Specific Gravity

Learn More

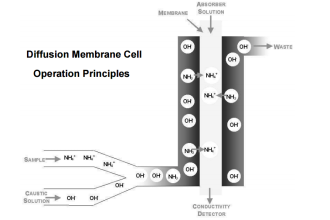

Ammonia Analyzer Working

Ammonia Analyzer Principle

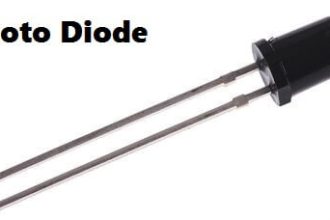

photo-diode
