How Manometer Measures Differential Pressure for Different Fluids?

Last updated: June 2, 2020 1:37 pm
Editorial Staff
Practical Questions
No Comments
Share
2 Min Read
SHARE

A manometer may be used to measure differential pressure across a restriction placed within a pipe. Pressure will be dropped as a result of flow through the pipe, making the manometer capable of (indirectly) measuring flow:

Mercury manometer

In the example shown above, the fluid moving through the pipe is air, and the manometer uses mercury as the indicating liquid. If we try to measure the flow rate of a liquid such as water using the same technique, though, we will find that the manometer does not register quite the way we might expect:

Manometer Measures Differential Pressure

That is to say, given the exact same amount of differential pressure generated by the restriction, the manometer will register differently than if it was measuring air pressure.

Determine whether the manometer will register falsely high or falsely low, and also why it will do so?

Answer:

The manometer will register falsely high, showing greater differential pressure than what is actually there. If you are having difficulty figuring this out, imagine if the liquid moving through the pipe was just as dense as the mercury within the manometer: what would that do to the mercury in the manometer given any applied ∆P?

In other words, set up a thought experiment with absurdly (simple) conditions and then look for patterns or trends which you may generalize for any condition.

Challenge question: derive a mathematical correction factor for interpreting the manometer’s indication to yield true inches of mercury ∆P.

Read Next:

  • What is an Orifice Flange?
  • Tube and tube fittings
  • Seal Material Selection
  • Data Flow Communication
  • Level Control Loop Problem

Credits: Tony R. Kuphaldt

Don't Miss Our Updates
Be the first to get exclusive content straight to your email.
We promise not to spam you. You can unsubscribe at any time.
Invalid email address
You've successfully subscribed !

Continue Reading

Vertical Tube Liquid Level Equilibrium
How much Pressure is applied to Inclined Water Manometer?
Displacer Level Transmitter Questions
Calculate Differential Pressure Sensed by Level Transmitter
Overhead Product Pressure Control Loop
Electronic Pressure Sensor with Bourdon Tube and LVDT
Share This Article
Facebook Whatsapp Whatsapp LinkedIn Copy Link
Share
Leave a Comment

Leave a Reply Cancel reply

Your email address will not be published. Required fields are marked *

Stay Connected

128.3kFollowersLike
69.1kFollowersFollow
210kSubscribersSubscribe
38kFollowersFollow

Categories

Explore More

Questions on Pressure Transmitter Calibration Setup
Practical Process Control System Questions & Answers – 7
Problem on Solar Hot Air Collector and Variable Speed Fan
Calculate Process Temperature using a Thermocouple
Hydrostatic Level Measurement – Temperature related Density Change Effects
Pressure Gauge with Block and Bleed Valves
Determine the Problems with Level Transmitter and Gauge
A Series of False Pressure Alarms

Keep Learning

4-wire pH Transmitter Problem

pH Transmitter Problem

float-type level switch control a pump

Float-type Level Switch to Control a pump

Motor ladder Logic

Draw a ladder logic circuit for the electric motor of an air compressor ?

Pneumatic Relay

Pneumatic Relay Questions

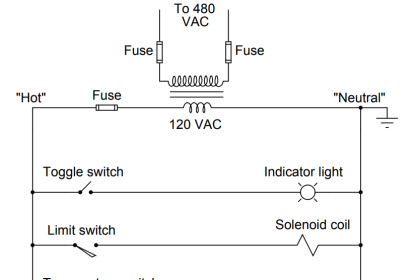

Relay ladder diagram example
