Dependent Voltage Source

Last updated: October 6, 2016 6:33 am
Editorial Staff
Electronic Devices & Circuits
No Comments
Share
2 Min Read
SHARE

Dependent Sources

An ideal source, either voltage or current, whose value depends upon some parameter (usually a voltage or current) in the circuit to which the source belongs is known as a dependent or controlled source.

The Dependent Voltage Source

A dependent voltage source establishes a voltage across its terminals, independent of the current through it, which is determined by the voltage or current at some other location in the electrical system. There are two types of dependent voltage source – the voltage-controlled voltage source (VCVS) and the current-controlled voltage source (CCVS).

Dependent Voltage Source

Note that the dependent source is represented by a diamond-shaped symbol so as not to confuse it with an independent source.

These  sources  are  mathematical  models  that  are  useful  in  modelling  real circuits and systems, e.g. they are used in modelling operational amplifiers.

Example:

Consider the circuit shown below. This circuit contains a dependent source whose value in this case depends on the voltage across the 4 Ω resistor – it is a VCVS.

dependent-voltage-source-circuit-example

To analyse the circuit, we apply KVL and obtain:

v1 – 3v2  + v2  = 12

or:

v1 – 2v2  = 12

By Ohm’s Law:

v1  = 2i

and

v2  = 4i

Therefore:

2i – 2(4i ) = 12

2i – 8i = 12

– 6i = 12

i = -2 A

Hence:

v2  = 4i = -8 V

and the value of the dependent voltage source is:

3v2  = -24 V



Don't Miss Our Updates
Be the first to get exclusive content straight to your email.
We promise not to spam you. You can unsubscribe at any time.
Invalid email address
You've successfully subscribed !

Continue Reading

Basic Electronics Questions & Answers
Summary Of Transistor Bias Circuits
Transistor Collector Characteristic Curves
Zener Diode Breakdown Characteristics
Short Circuit and Open Circuit
Photodiode as Variable Resistance Device
Share This Article
Facebook Whatsapp Whatsapp LinkedIn Copy Link
Share
Leave a Comment

Leave a Reply Cancel reply

Your email address will not be published. Required fields are marked *

Stay Connected

128.3kFollowersLike
69.1kFollowersFollow
210kSubscribersSubscribe
38kFollowersFollow

Categories

Explore More

Comparison of MOSFET and BJT

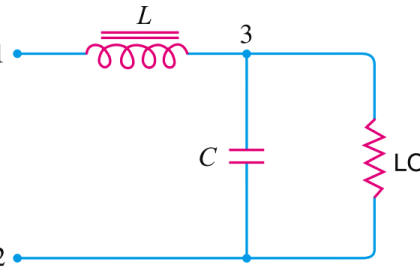

Choke Input Filter Operation
How the Matrix Keypad works with a Micro controller?
Troubleshooting a Biased Transistor
Laser Diode Working Principle
Methods of Transistor Biasing
Combining Independent Voltage Sources in Series
PMMC Temperature Compensation

Keep Learning

Zener Diode Voltage Regulator Operation

Zener Diode Voltage Regulator Operation

Comparison of CB, CE & CC Amplifiers

Comparison of Transistor Configurations

Transistors Questions & Answers

Transistors Questions & Answers

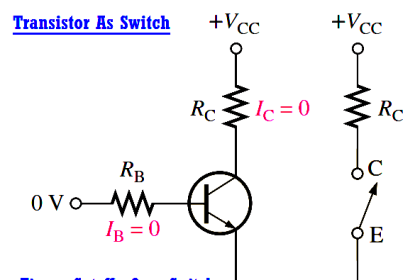

Transistor as Switch in Cut off region

Transistor as a Switch Working Principle

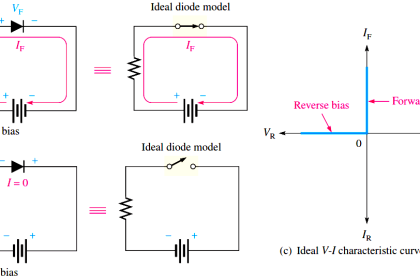

Ideal Diode Characteristics
