A threephase M3 converter is operated from a 3phase, 230 V, 50 Hz supply with load resistance R = 10 Ω. Find the value of firing angle if an average output voltage of 50% of the maximum possible output voltage is required. Hint: α > 30°.
Correct!
Wrong!

A threephase, threepulse, M3 type controlled converter uses ____________ number of SCRs.
Correct!
Wrong!

Find the expression for average output voltage for the given circuit if firing angle is greater than 30°. Take Vmp = secondary side maximum value of phase voltage.
Correct!
Wrong!

A threephase halfwave controlled converter is fed from a 3phase, 400 V source and is connected to a load which takes a constant current of 36 A. Find,the value of average output voltage and average current rating of SCR for a firing angle of 30°.
Correct!
Wrong!

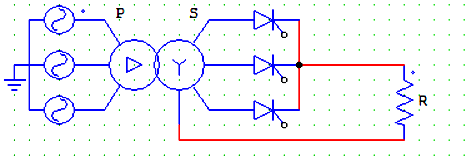

Find the expression for average output voltage at R for the below given configuration. Take firing angle as α = 15°, transformer ratio as 1:1:1 and Vmp as the maximum value of phase voltage at the supply.
Correct!
Wrong!

In a threephase, threepulse, M3 type controlled converter T1 starts to conduct at 30 + n°. At what angles do T2 and T3 start to conduct? Assume that the conduction sequence is T1T2T3.
Correct!
Wrong!

In the circuit shown below, SCR T1 conducts first. If T1 is fired at an angle of α > 30°, then T1 would conduct from
Correct!
Wrong!

A threephase three pulse type controlled converter is constructed using 3 SCR devices. The circuit is supplying an R load with α < 30°. As such, each SCR device would conduct for
Correct!
Wrong!

A threephase, threepulse, M3 type controlled converter has firing angle for one of the SCRs set as 15°. This SCR would start conducting at
Correct!
Wrong!

A threephase threepulse converter would operate as a line commutated inverter when
Correct!
Wrong!
