Instrumentation Cables Testing Standards

Instrumentation Cables Testing Standards for Thermocouple Extension, Compensating, Signal, Control, and Power cables.

Last updated: August 29, 2020 4:58 pm
Editorial Staff
Standards
1 Comment
Share
2 Min Read
SHARE

The types of instrumentation cables include are:

Contents
Cables Testing StandardsIS :8130ANSI MC 96.1IS : 5831IS : 3975IS : 1554IS : 694IEEE : 383ASTM-D-2863ASTM -D -2843IEC -332- 1 and 3IEC -754-1SS-424-14-75 (F-3)Instrumentation Cables Specifications
  • Signal cables
  • Control cables
  • Instrumentation Power cables
  • Thermocouple Extension, Compensating cables
  • RTD Cables

Cables Testing Standards



Instrumentation Cables Testing Standards

IS :8130

Annealing test for conductors, Wrapping test for conductors Persulphate test for tinned copper conductors, Conductor resistance test for copper conductors

ANSI MC 96.1

Thermo-emf performance test for thermocouple cables, Loop resistance test for thermocouple cables.

IS : 5831

Insulation and sheath thickness test, Tensile strength of insulation and sheath, Elongation test for insulation and sheath, Shrinkage test for insulation and sheath, Loss of mass test for insulation and sheath, loss of mass test for insulation and sheath, Ageing test for insulation and sheath, heat shock test for insulation and sheath Bleaching and blooming test for insulation and sheath, Insulation resistance test for insulation and sheath, flammability test for cable.

IS : 3975

Tensile strength of armour material, Elongation test for armour material, Zinc coating test on GI armour wire.

IS : 1554

Tensile strength for insulation and sheath, Elongation strength for insulation and sheath, High voltage test for insulation and sheath.

IS : 694

Spark test for insulation and sheath, HV test for insulation and sheath.

IEEE : 383

Flame resistance test.

ASTM-D-2863

Limiting Oxygen Index test, Temperature Index Test.

ASTM -D -2843

Smoke density test.

IEC -332- 1 and 3

Flammability test.

IEC -754-1

HCI gas emmission test.

SS-424-14-75 (F-3)

Flame retardancy test (Swedish chimney test),  Noise rejection ratio test, and Rodent & termite resistance chemical test.

Instrumentation Cables Specifications

Instrumentation Cables Specifications

Source: General Instruments

Read Next:

  • RTD Testing Methods
  • Thermocouple Questions
  • Thermocouple Junction Types
  • RTD Troubleshooting Tips
  • Temperature Gauges Specification
Don't Miss Our Updates
Be the first to get exclusive content straight to your email.
We promise not to spam you. You can unsubscribe at any time.
Invalid email address
You've successfully subscribed !

Continue Reading

Difference Between IEC 60909 and IEC 61363 for Short Circuit
Hazardous Area Terminology
Intrinsic Safety Protection ia and ib
List of Valve Standards
Instrumentation Standards
Classified Areas and Electrical Safety Measures
Share This Article
Facebook Whatsapp Whatsapp LinkedIn Copy Link
Share
1 Comment
  • mohdkusno says:
    September 3, 2020 at 7:43 am

    i want to learn instrument

    Reply

Leave a Reply Cancel reply

Your email address will not be published. Required fields are marked *

Stay Connected

128.3kFollowersLike
69.1kFollowersFollow
210kSubscribersSubscribe
38kFollowersFollow

Categories

Explore More

Hazardous Area Classification Questions
What is NAMUR NE 43?
ATEX Ratings, Intrinsic Safety, Hazardous Areas and Explosive Atmospheres
ISA codes for Process Instrumentation
NFPA Standards (National Fire Protection Association Standards)
Understanding Hazardous Area Classification
Basics of Electromagnetic compatibility (EMC)
Why is IEC 60269 Important? – Electrical Applications

Keep Learning

IEC 61508

What is IEC 61508 ?

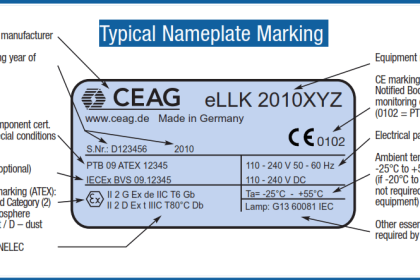

Identification of Equipment Standards

Identification of Equipment

NEMA to IP Ratings

NEMA Enclosure Types Standards

Instrumentation Standards

Standard Temperature and Pressure Conditions

Purge & Pressurization Systems Questions

Purge & Pressurization Systems Interview Questions

device-specific-diagnostics-to-ne107-status-signals

NAMUR NE107 Standard

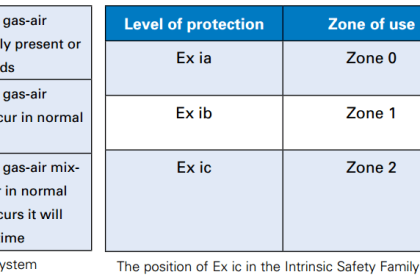

IEC Area Classification System
