Face Mask Making Machine using PLC and HMI

Here you will learn the face mask making machine types and different manufacturing stages using the PLC HMI Servos.

Last updated: April 28, 2022 9:11 am
Editorial Staff
PLC Tutorials
No Comments
Share
4 Min Read
SHARE

In today’s world, there is a high demand for surgical face mask machines and thus growing the requirement for automation systems. We have different types of face mask-making machines available in the market based on manual, semi-automatic, and fully-automatic control systems.

Contents
Overview of Mask MachineMain Body of Face Mask MachineDistributing Mechanism of the Face MaskFace Mask Elastic BeltMask Packing Machine

The Wecon company is an expert in the field of industrial automation products and solutions. They designed advanced fully-automatic face mask machines using PLC, HMI, and Servos.

WECON Logo
Application of WECON HMI and PLC in Mask Machine

Overview of Mask Machine

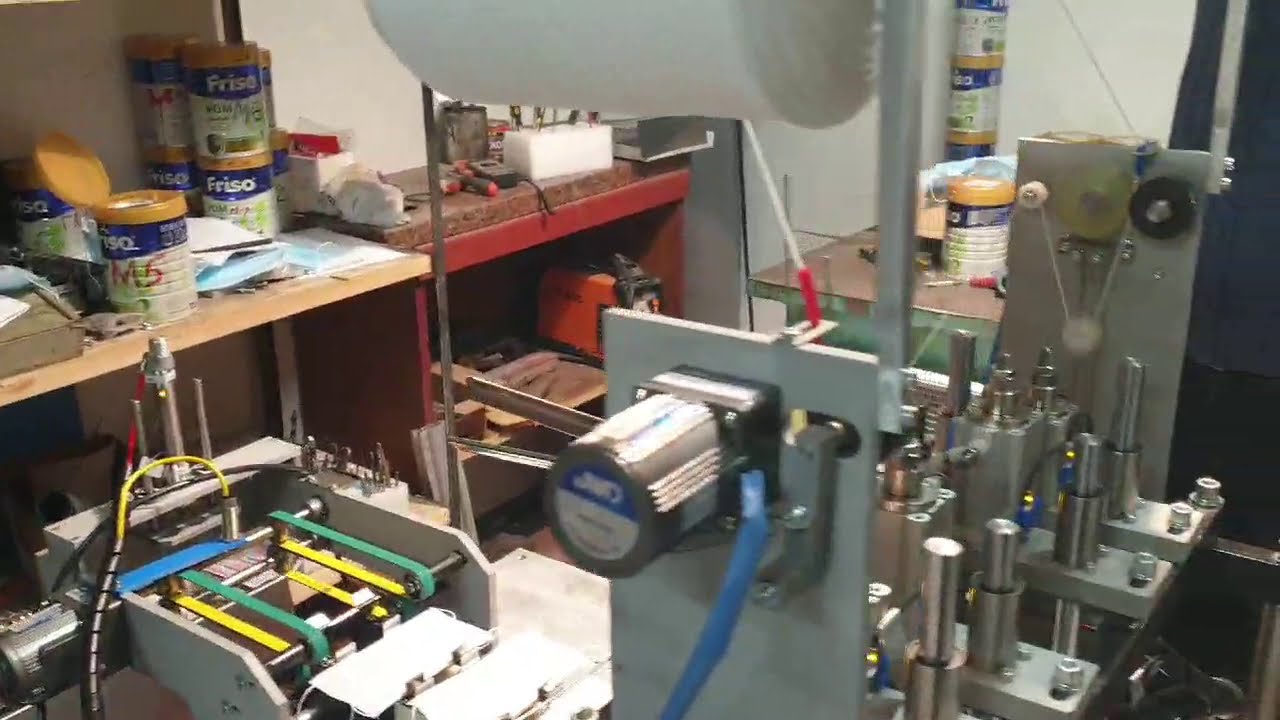

The main equipment of a mask-making machine is an automatic plane mask machine and mask packing machine.

There are 3 types of mask-making machines available and they are 1st generation machine, 2nd generation machine, and 3rd generation machine.

The pictures are shown below.

Surgical Mask Machine
First Generation Face Mask Making Machine
Face Mask Maker Machine
Second GenerationFace Mask Making Machine

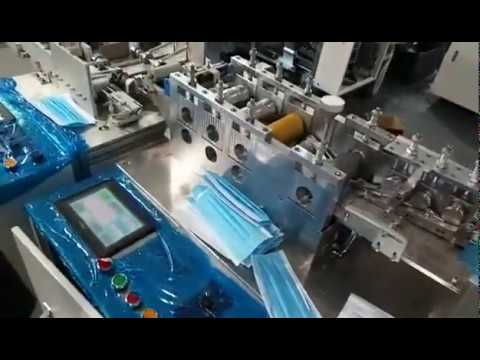

Fully Automatic Mask Manufacturing Making Machine
Third GenerationFace Mask Making Machine

This article mainly focuses on the PLC-based mask-making third-generation machine using Wecon PLC and HMI.

The following are the different parts of the face mask machine.

Main Body of Face Mask Machine

Here mainly system works on the materials of the face mask. All the required raw materials will be collected.

The press material slice, that is to say, fold, press, and cut the non-woven fabric into one piece.

The main parts of this system are a PLC, HMI, VFD drive, photoelectric sensor, relay, and contactor.

ItemModelQtyDescription
PLCLX3V-1412MT114 Inputs, 12 Outputs
HMIPI3070i1RS485

Distributing Mechanism of the Face Mask

Pressing slice: feeding, that is, turning over the mask body after pressing the slice and sending it to the next stage for processing.

The below equipment is used for this process.

ItemModelQtyDescription
PLCLX3V-2424MT124 Inputs, 16 Outputs
HMIPI3070i1RS485

Face Mask Elastic Belt

After pressing and cutting the face mask body, the elastic belt is respectively welded/stitched on the left and right sides of the mask body and then automatically wrapped.

Face Mask Making Machine using PLC and HMI

The first generation face mask system is mainly composed of one servo and multiple cylinders; the third generation system is mainly composed of one servo and three steps to replace some cylinder functions.

The required components for this process are mentioned in the below table.

ItemModelQtyDescription
PLCLX3V-3624MT236 Inputs, 24 Outputs
IO ModuleL3V-16EYT2
HMIPI3070i2RS485
ServoVD1-075SE1G2750W
First Generation Face mask machine-related Components
ItemModelQtyDescription
PLCLX3V-3624MT236 Inputs, 24 Outputs
HMIPI3070i2RS485
ServoVD1-075SE1G2750W
Third Generation Face mask machine-related Components

Mask Packing Machine

The equipment is mainly used for the packaging of finished face masks.

According to different feeding methods, the system can be applied to the machine with a chain and push plate as the feeding shaft and the automatic material handling machine with a belt as the feeding shaft.

WECON HMI Application in Face Mask Machine

By collecting the blanking signal of the respirator packaging machine, and online production with the respirator machine, a respirator packaging production line can be formed, which can greatly reduce the number of workers who place the packaging manually (at present, most of the control systems on the market can only realize the single machine function).

The below table shows the required equipment.

ItemModelQtyDescription
PLCLX3V-1616MT4H116 Inputs, 16 Outputs, 4 High-Speed Outputs
HMIPI3070i1RS485
ServoVD1-075SE1G3750W

You can contact Wecon for any product queries and technical information. Contact Us
