Thyristor Chopper Circuits Objective Questions – 2

A voltage commutated chopper feeds power to an electric car (battery-powered). The battery voltage is 60 V. The SCR turn-off time is 20 μs. Calculate the value of capacitor (C) required for the commutating circuit.

In the below given circuit, at the instant T1 the main SCR is triggered, the voltage across the load terminal is

Identify the below given circuit.

A voltage commutated chopper has the following parameters:
Vs = 220 V. Commutation circuit: L = 20 μH and C = 50 μF.
Find the turn-off time for the main SCR with a constant load current of 80 A and Ton = 800 μsecs.

The load commutated chopper circuit consists of

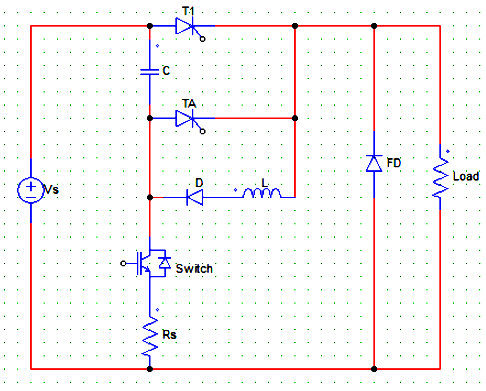

For the below given voltage commutation circuit, find the peak value of voltage across the freewheeling diode FD.

A current commutated chopper is fed from a source of 230 V. Its commutating components are L = 20 μH and C = 50 μF. Find the value of peak commutating current.

A voltage commutated chopper has the following parameters:
Vs = 220 V. Commutation circuit: L = 20 μH and C = 50 μF.
Find the effective on period for a constant load current of 80 A and Ton = 800 μsecs.

In current commutated copper circuit

A voltage commutated chopper feeds power to an electric car (battery-powered). The battery voltage is 60 V. Starting current is 60 A and the SCR turn-off time is 20 μs. Calculate the value of inductance (L) required for the commutating circuit.
