Deep-Bed Filters

Last updated: May 19, 2018 8:37 pm
Editorial Staff
Process
No Comments
Share
3 Min Read
SHARE

Filtration is a process used to remove suspended solids from a solution. Other processes such as demineralization remove ions or dissolved ions. Different filters and strainers are used for different applications. In general, the filter passage must be small enough to catch the suspended solids but large enough that the system can operate at normal system pressures and flows.

Deep-Bed Filters

Deep-bed filters are usually found only in makeup water systems, where they are used to filter water after it has been treated in a clarifier. They are used to remove organic matter, chlorine, and very fine particulate matter.

A deep-bed filter is based on a support screen (decking), which is mounted a few inches above the bottom of the tank. The screen is perforated to allow water to flow through it. A coarse, aggregate layer of crushed rock or large lumps of charcoal is placed on top of the screen, and the deep bed itself (2 to 4 feet of granular anthracite or charcoal) is placed on top of the aggregate. The filter is sized so that there is 1 to 2 feet of “free board” above the deep bed.

Deep-Bed Filter

When the filter is in service, raw water is pumped in through a pipe that feeds a distribution pipe above the deep bed. The water is filtered as it percolates down through the granules. (Charcoal granules will filter out organic matter, chlorine, and fine particulates, while anthracite granules remove only the particulates.) The water collects in the bottom of the tank, below the support screen, and leaves the filter through a pipe in the bottom of the filter vessel.

Deep-bed filters, like precoat filters, are cleaned by backwashing. Water is pumped through the distribution piping near the top of the filter. The flow rate of the water is kept high enough to lift the granulated charcoal or anthracite up into the free space. The water washes away the deposits that have accumulated. When the backwash cycle is completed, the flow is stopped, and the granules settle back down into the filter bed. The filter can then be put back into service.

Don't Miss Our Updates
Be the first to get exclusive content straight to your email.
We promise not to spam you. You can unsubscribe at any time.
Invalid email address
You've successfully subscribed !

Continue Reading

CO2 Stripper Collapsed Internals Revamp
What are Positive Displacement Pumps and their Types?
Refrigeration Compressor Turbine Not-tripping when needed Trip
Compressor Anti-Surge Control near-miss incident
Membrane Bioreactor in Water Treatment – MBR Process
What is a Y Strainer ?
Share This Article
Facebook Whatsapp Whatsapp LinkedIn Copy Link
Share
Leave a Comment

Leave a Reply Cancel reply

Your email address will not be published. Required fields are marked *

Stay Connected

128.3kFollowersLike
69.1kFollowersFollow
210kSubscribersSubscribe
38kFollowersFollow

Categories

Explore More

What is a Deaerator? – Working Principle
What is a Circulating Pump?
Desuperheater Design
Boilers
Precoat Filters
Compressor IP Case Discharge Temperature Gradually Increases
Gas Compressor Seal Oil System
Superheated Steam Temperature Control System

Keep Learning

Types of Heat Exchangers

Types of Heat Exchangers

Flame Arrester Principle

Flame Arrester Principle

Pumps Quiz

Pumps Quiz

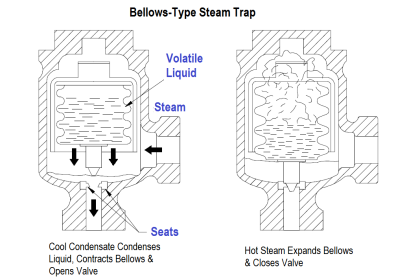

Bellows-Type Steam Trap

Bellows Steam Trap

desuperheater

Concept of Desuperheater

Instrument Air (IA) System

Process Design of Instrument Air System

Ball Float Steam Trap

Ball Float Steam Trap

swing check valve Theory

Hydraulic System

Learn More

Multimeter Digits

Multimeter – What Do Digits and Counts Mean?

Overhead Product Pressure Control Loop

Overhead Product Pressure Control Loop

Pre-Engineering Design Documents

Industrial Automation Pre-Engineering Design Documents – Project & Process

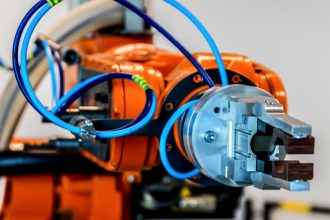

Difference between Motion Controller and PLC
