Constructing Phase-Trajectories

Last updated: November 27, 2021 5:39 pm
Editorial Staff
Multiple Choice Questions
No Comments
Share
4 Min Read
SHARE

Constructing Phase-Trajectories

1. In liquid level and electrical system analogy, voltage is considered analogous to :

a) Head
b) Liquid flow
c) Liquid flow rate
d) Air flow rate

Answer: a

Explanation: In liquid level and electrical system analogy, voltage is considered analogous to the head which can be pressure head that is the potential energy.

2. The viscous friction co-efficient, in force-voltage analogy, is analogous to:

a) Charge
b) Resistance
c) Reciprocal of inductance
d) Reciprocal of conductance

Answer: b

Explanation: The viscous friction co-efficient in force-voltage analogy, is analogous to resistance of the electrical circuit that can be found out mathematically.

3. In force-voltage analogy, velocity is analogous to:

a) Current
b) Charge
c) Inductance
d) Capacitance

Answer: a

Explanation: In force-voltage analogy, velocity is analogous to the current in force-voltage that is also called series circuit.

4. In thermal-electrical analogy charge is considered analogous to:

a) Heat flow
b) Reciprocal of heat flow
c) Reciprocal of temperature
d) Temperature

Answer: d

Explanation: In thermal-electrical analogy in which heat transfer in the wire or conductor can be related to the temperature.

5. Mass, in force-voltage analogy, is analogous to:

a) Charge
b) Current
c) Inductance
d) Resistance

Answer: c

Explanation: Mass, is analogous to the inductance in the force-voltage analogy in the series form as all the elements of the circuit are connected in the parallel.

6. The transient response of a system is mainly due to:

a) Inertia forces
b) Internal forces
c) Stored energy
d) Friction

Answer: c

Explanation: The transient response of the system is mainly due to stored energy as it is due to the initial conditions which is nothing but the stored energy.

7. ___________ signal will become zero when the feedback signal and reference signs are equal.

a) Input
b) Actuating
c) Feedback
d) Reference

Answer: b

Explanation: Actuating signal is the difference between the feedback signal and the reference signal and when both of the signals are equal then the signal is zero.

8. A signal other than the reference input that tends to affect the value of controlled variable is known as

a) Disturbance
b) Command
c) Control element
d) Reference input

Answer: a

Explanation: Disturbance signal is also the reference signal only there can be multiple inputs in a control system or the other input is called the disturbance signal.

9. The transfer function is applicable to which of the following?

a) Linear and time-in variant systems
b) Linear and time-variant systems
c) Linear systems
d) Non-linear systems

Answer: a

Explanation: The transfer function is different from the state space approach as the transfer function approach is similar to the LTI systems only while the state variable analysis is applicable to the non-linear time variant systems also.

10. From which of the following transfer function can be obtained?

a) Signal flow graph
b) Analogous table
c) Output-input ratio
d) Standard block system

Answer: a

Explanation: The transfer function can be obtained by using signal flow graphs from among these given methods.

Don't Miss Our Updates
Be the first to get exclusive content straight to your email.
We promise not to spam you. You can unsubscribe at any time.
Invalid email address
You've successfully subscribed !

Continue Reading

Cascade Compensation in Time Domain
Programmable Logic Controllers Multiple Choice Questions
Sensivity Enhancement for NMR Spectroscopy Questions & Answers
Adaptive Control
Effect of Adding a Zero to a System – II
Fourier Transform NMR Spectroscopy Questions & Answers
Share This Article
Facebook Whatsapp Whatsapp LinkedIn Copy Link
Share
Leave a Comment

Leave a Reply Cancel reply

Your email address will not be published. Required fields are marked *

Stay Connected

128.3kFollowersLike
69.1kFollowersFollow
208kSubscribersSubscribe
38kFollowersFollow

Categories

Explore More

Signal Flow Graphs Objective Questions
Instrumentation of ESR Spectrometer
Measurement and Instrumentation Objective Questions – Part 3
Ammonia and Fluoride Electrode Questions & Answers
Operation of Chromatography Questions & Answers
Nuclear Magnetic Resonance Spectrometer Questions & Answers
Hydrocarbons Questions & Answers
Measurement and Instrumentation Objective Questions – Part 2

Keep Learning

UV Visible Spectrometers Questions and Answers

UV Visible Spectrometers Questions and Answers

State Variable Analysis and Design

Diagonalization

Chromatography Questions & Answers

Detection System of Liquid Chromatography Questions & Answers

Chromatography Questions & Answers

Gas Chromatography Questions & Answers

State Variable Analysis and Design

Controllability & Observability

Mass Spectrometer Questions and Answers

Quadrupole Mass Spectrometer

Mathematical Models of Physical Systems

Differential Equations of Physical Systems & Dynamics of Robotic Mechanisms

Stability in Frequency Domain

Assessment of Relative Stability Using Nyquist Criterion

Learn More

Control Valve Air to Open type

Control Valve Installation, Maintenance, Disassembly & Reassembly

Power Electronics Objective Questions

Single Phase Voltage Source Inverter Quiz

Current Law

Applying Kirchhoff’s Current Law

Master Control Reset (MCR) ladder logic

How to use Master Control Reset (MCR) Instruction in PLC

Rotameters Working

Rotameter Working Principle and Animation

Resistance Temperature Detector (RTD) Questions

Resistance Temperature Detector (RTD) Questions – 1

Proximity Switch Working Animation

Proximity Switch Working Animation

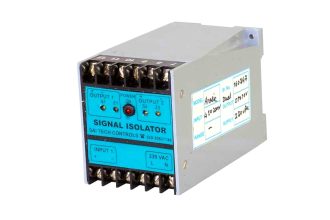

Signal Isolator
