Three Phase Transformers

If one of the transformers is removed from the bank of only delta-delta, then it behaves with 58% power delivery.

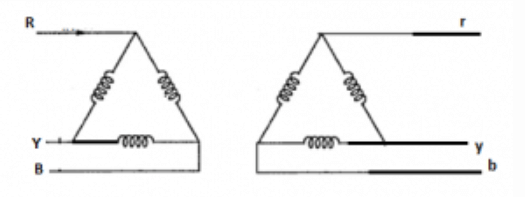

Below is the circuit diagram for delta-delta transformer have a transformation ratio ‘k’. The current flowing in the windings of phase r-y in the below diagrams is

he voltage across the terminal ‘r’ and ‘y’ is

If para magnetic core is used in the place of the ferromagnetic core of the transformer, then magnetostriction will

Three units of single phase transformers and one single three-phase transformer rating

When we magnetize the ferromagnetic core of the transformer, core length_______ and it ______ when demagnetized.

A 400 V, 10 KVA transformer at 50 Hz, is operated at the frequency of 40 Hz, then the humming

The delta-delta connections are used in applications of

Shape of emf generated by delta connected transformer is not always sinusoidal.

The transformer which is more feasible to use in the distribution ends should be

While using three phase transformers, it is taken care about the third harmonics current in the system.
This is present when transformer set is delta on either side.

Open delta transformers can be obtained from

A recording of the output of the emf induced for star and delta are recorded.
Then shape of the emf induced in Y-connected 3-phase transformer is non sinusoidal in nature due to

A V-V connected transformer can be connected in parallel to delta-delta connected transformer but not to

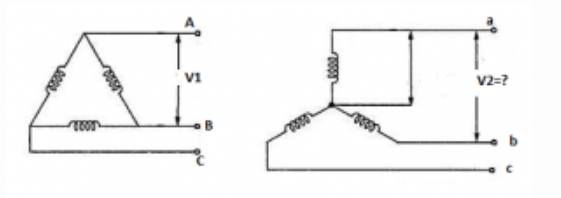

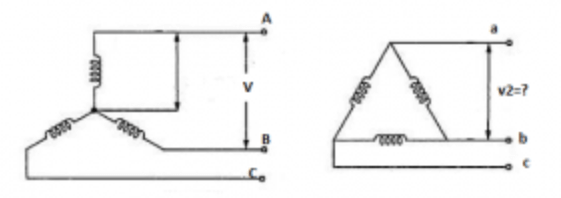

For the given circuit below, the voltage across the terminal ‘a’ and ‘b’ is

A. Positive sequence components – 7th harmonic component
B. Negative sequence components – 5th harmonic component
C. Zero sequence components – 3rd harmonic component
Above are the matching made for the harmonics and the associated harmonic component, then the correct marking is
