Logic Gates and Networks Objective Questions
Digital Electronics Objective Questions
0%
How many AND gates are required to realize Y = CD + EF + G ?
Correct!
Wrong!

How many twoinput AND and OR gates are required to realize Y = CD+EF+G?
Correct!
Wrong!

A universal logic gate is one which can be used to generate any logic function. Which of the following is a universal logic gate?
Correct!
Wrong!

A full adder logic circuit will have
Correct!
Wrong!

The gates required to build a half adder are
Correct!
Wrong!

The following switching functions are to be implemented using a decoder:
f1 = ∑m(1, 2, 4, 8, 10, 14) f2 = ∑m(2, 5, 9, 11) f3 = ∑m(2, 4, 5, 6, 7)
The minimum configuration of decoder will be
f1 = ∑m(1, 2, 4, 8, 10, 14) f2 = ∑m(2, 5, 9, 11) f3 = ∑m(2, 4, 5, 6, 7)
The minimum configuration of decoder will be
Correct!
Wrong!

The NOR gate output will be high if the two inputs are
Correct!
Wrong!

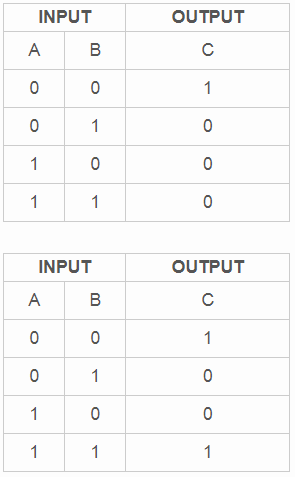

The output of a logic gate is 1 when all the input are at logic 0 as shown below:
The gate is either
The gate is either
Correct!
Wrong!

The code where all successive numbers differ from their preceding number by single bit is
Correct!
Wrong!

Which of following are known as universal gates?
Correct!
Wrong!

How many two input AND gates and two input OR gates are required to realize Y = BD + CE + AB?
Correct!
Wrong!
